Written by Elisabeth Riemesch on 28 June 2023. Posted in PD Event Lighting.

JDC Line 500 – Product Data

• Manual Files: files/products/jdc-line-500-product-data/GLP_JDC_Line_500_Quick_Start_Safety_Manual_EN_Rev_20211114-01.pdffiles/products/jdc-line-500-product-data/GLP_JDCLine_500_1000_Pattern_Overview_Rev_20201209.pdffiles/products/jdc-line-500-product-data/JDC_Line_500_User_Manual_EN_Rev_20240618-01.pdf
• DMX Charts: files/products/jdc-line-500-product-data/JDC_Line_500_DMX_Channel_Index_Rev_20240618-01.pdf
• Photometric Files: files/products/jdc-line-500-product-data/GLP_JDCLine_500_Photometrics_Rev_20210805-1.zip
• Fixture Lib. Files: files/products/jdc-line-500-product-data/GLP_JDC_Line_500_Wysiwyg_Rev20210720-1_Prelim_4.zipfiles/products/jdc-line-500-product-data/GLP_JDCLine500_Camsys_Rev20210412.zipfiles/products/jdc-line-500-product-data/GLP_JDCLine500_HOG_Rev20210621.zipfiles/products/jdc-line-500-product-data/GLP_JDC_Line_500_MA2__Rev20250226-1.zip
• CAD Files: files/products/jdc-line-500-product-data/GLP_JDC_Line_500_1000_CAD_Rev20230918-1.zip
• Info Material Files: files/products/jdc-line-500-product-data/GLP_JDC-Line.pdffiles/products/jdc-line-500-product-data/JDC-Line_final_Rev20230914.pdf
• Header Image:
• Product Picture Gallery:



  JDC Line 500



  JDC Line 500



  JDC Line 500



  JDC Line 500

• Tender Text Files: files/products/jdc-line-500-product-data/GLP_JDCLine_500_1000_Tendertext_EN_DE_Rev20210609-1.zip
• Firmware: files/products/jdc-line-500-product-data/GLP_JDCLine_500_1000_Firmware_V1-0-0_Rev20240410-1.zip
• Product info:
  • Long product text (editor):

    The JDC Line is the new Hybrid highlight Product from GLP and combines a powerful strobe line with a never seen powerful LED pixel mapping device. There are a lot of Pixel-Mapping/Video-Sticks in the market but they all just offer the brightness of a typical video stick and the pixelpitch always has black areas between the pixel segments. The JDC Line is completely different and offers a much brighter RGB Pixel mapping effect mixed by a special 500 mm lens tube which gives great look and new design options.

    The pixel sements of the JDC Line measures The pixel sements of the JDC Line measures 25 mm in width. The segments are seemless next to each other, so that there are no blackout areas between the pixels. A super highlight feature: Each pixel segment can be split into upper and lower part which gives additional creative options. The second part of the fixture is a powerful strobe tube, well known from the JDC center beam LEDs. The JDC Strobe LEDs emit into the same lens tube as the RGB Pixel Mapping LEDs and also offer a segmentation of 25 mm for stunning dynamic effects. The idea to emit the powerful strobe and the RGB Pixel mapping output through the same lens tube creates a very nice look and avoids seeing ugly separate LEDs or light reflections from white face LEDs.

    The smart rigging accessories such as rigging bracket and alignment bracket provide a convenient handling of the product. The smart rigging accessories such as rigging bracket and alignment bracket provide a convenient handling of the product. Using the alignment bracket, multiple devices can be easily mechanically connected together while the rigging bracket allows an installation of rigging clamps on the top, button, and back side of the product. A clever airflow design allows the cooling of the fixture also when lying on the ground, installed between objects or on top of each other.

    , Short product description: RGB Pixel Segments and White strobe line, Segment Effect Engine, continuous alignment, optical filter options
• Anschlüsse:
  • Daten enthalten?: ja, Netzanschluss: Neutrik powerCON TRUE1 In/Out, Signalverbindung: Neutrik XLR 5-Pin In/Out, Neutrik etherCON In/Out
• Aufbau:
  • Daten enthalten?: ja, Eigenschaften: integrierte Griffe | magnetischer Frontscreen | Alignment Bracket, Gehäusefarbe: schwarz, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech, Schutzklasse: IP20
• Steuerung & Programmierung:
  • Daten enthalten?: ja, Control Modes: M1: RGBWStrobe | M2: WStrobe, RGBStrobe | M3: WStrobe, RGB Pixel | M4: RGBStrobe, W Pixel | M5: MultiPix | M6: MultiPix Advanced | M7: Multipix Quadpix, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, DMX Channels: M1: 16 | M2: 34 | M3: 84 | M4: 47 | M5: 98 | M6: 158 | M7: 38, Dimmerkurven: linear, soft, Fan Modes: regulated, high, medium, low, High-Res Channels: Intensity, Weitere Steuerungsoptionen: Splitt Pixel Segments, Einstellung und Adressierung: Multicolor-Grafikdisplay, 4 Button Menu Navigation, DMX, RDM, Geräte-Update: DMX Link via Dprog, Weißpunkte: White LED: 6.600 – 7.100 K (abhängig von Dimmer) | RGB LED: 6.500 K (voreingestellt, variierbar)
• Maße & Gewicht:
  • Daten enthalten?: ja, Tiefe: 201,5 mm / 7.93 in, Höhe: 74 mm / 2.9 in, Gewicht (netto): 6 kg / 13.23 lbs, Breite: 507 mm / 19.96 in
• Elektrische Spezifikationen:
  • Daten enthalten?: ja, Sicherung: T12A 250V 6x32mm, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 800 W
• Lichtquelle:
  • Daten enthalten?: ja, CRI: White LED: 78, Anzahl: 100x White LED | 200x RGB LED, Lebensdauer: 50.000 h, TLCI: White LED: 53, TM-30-15: White LED: 97 / 71, Typ: White Strobe LED | RGB LED
• Installation:
  • Daten enthalten?: ja, Befestigung: 2 Paar 1/4-Drehverschlüsse, 2 Ösen für Sicherungskabel, 1x Rigging Bracket mit 2 Paar 1/4-Drehverschlüssen, Ausrichtung: beliebig, Mindestabstand zu entzündlichen Materialien: 0,1 m, Mindestabstand zu beleuchteten Oberflächen: 1,0 m
• Optisches System:
  • Daten enthalten?: ja, beam angle: 150/64° half peak | 160/70° field angle | 160/88° cutoff angle, Frontlinse: rechteckig: 464,15 x 22 mm / 19.45 x 0.87 in, Licht-Output: White LED: 20.400 lm | RGBW LED: 42.100 lm
• Light Source:
  • CRI: White LED: 78, Count: 100x White LED | 200x RGB LED, Lifetime: 50,000 h, TLCI: White LED: 53, TM-30-15: White LED: 97 / 71, Type: White Strobe LED | RGB LED
• Thermische Spezifikationen:
  • Daten enthalten?: ja, Kühlung: Kombination aus Konvektions- und Zwangskühlung, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: 5 °C / 40 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In/Out, Signal connection: Neutrik XLR 5-Pin In/Out, Neutrik etherCON In/Out
• Construction:
  • Construction features: integrated handles | magnetic front screen | Alignment Bracket, Housing color: Black, Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates, Protection Rating: IP20
• Electrical Specifications:
  • Fuse: T12A 250V 6x32mm, Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 800 W
• Installation:
  • Mounting: 2 pairs of 1/4-turn locks, 2 eyelets for safety cable, 1x Rigging Bracket with 2 pairs of 1/4-turn locks, Orientation: any, min. distance to combustible materials: 0.1 m, min. distance to illuminated surfaces: 1.0 m
• Dimensions & Weight:
  • Depth: 201.5 mm / 7.93 in, Height: 74 mm / 2.9 in, Weight (netto): 6 kg / 13.23 lbs, Width: 507 mm / 19.96 in
• Optical System:
  • beam angle: 150/64° half peak | 160/70° field angle | 160/88° cutoff angle, Front lens: square: 464.15 x 22 mm / 19.45 x 0.87 in, Total Output: White LED: 20,400 lm | RGBW LED: 42,100 lm
• Control & Programming:
  • Control Modes: M1: RGBWStrobe | M2: WStrobe, RGBStrobe | M3: WStrobe, RGB Pixel | M4: RGBStrobe, W Pixel | M5: MultiPix | M6: MultiPix Advanced | M7: Multipix Quadpix, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, DMX Channels: M1: 16 | M2: 34 | M3: 84 | M4: 47 | M5: 98 | M6: 158 | M7: 38, Dimming curves: linear, soft, Fan Modes: regulated, high, medium, low, High-Res Channels: Intensity, Other control options: Splitt Pixel Segments, Setting and addressing: multicolor graphic display, 4 Button Menu Navigation, DMX, RDM, Software update: DMX Link via Dprog, White Points: White LED: 6,600 – 7,100 K (depends on dimmer level) | RGB LED: 6,500 K (default, changeable)
• Thermal Specifications:
  • Cooling Type: combined convection and forced air, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: 5 °C / 40 °F

• Hits: 101

Written by Elisabeth Riemesch on 28 June 2023. Posted in PD Event Lighting.

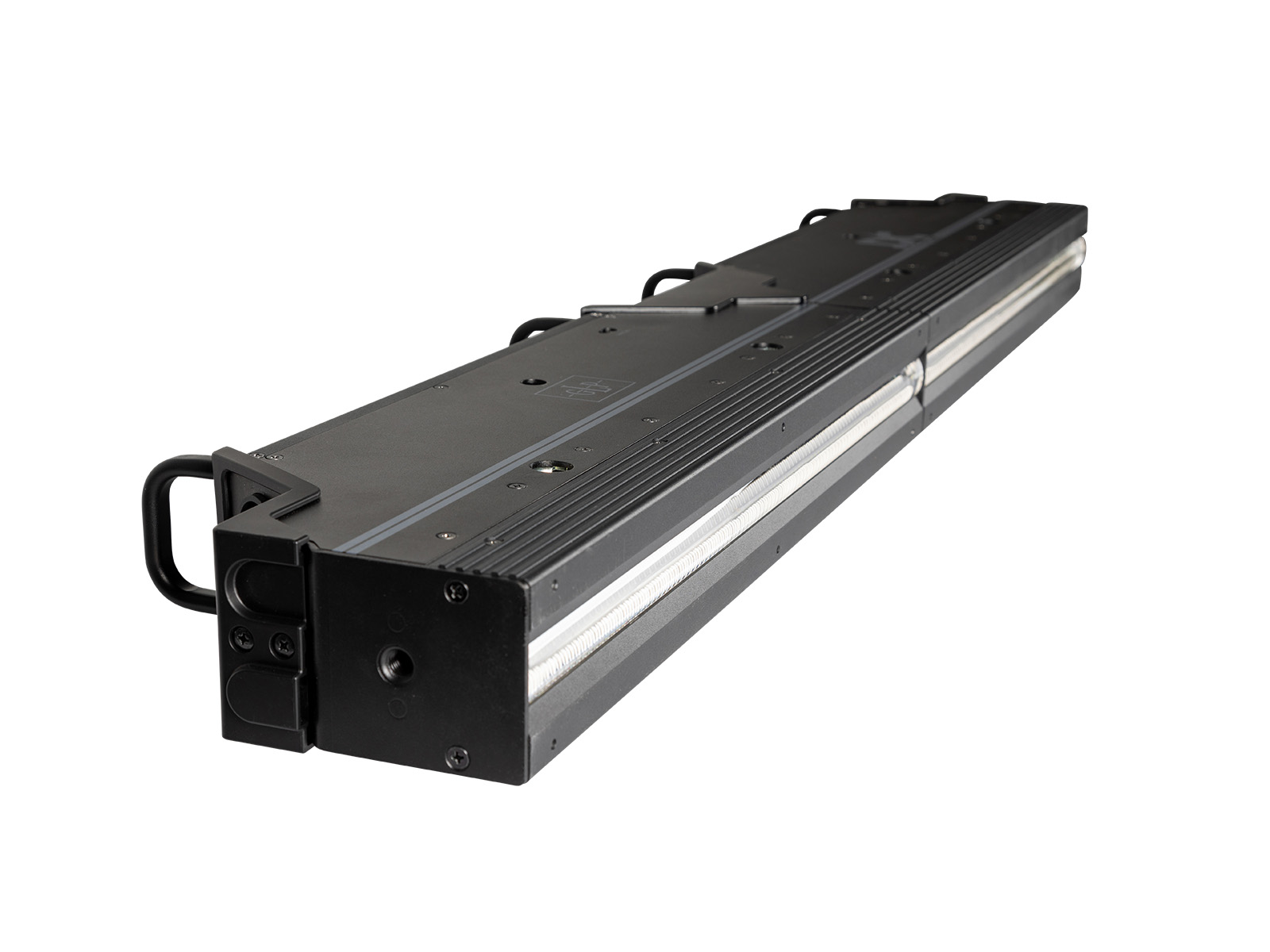

JDC Line 1000 – Product Data

• Manual Files: files/products/jdc-line-1000-product-data/GLP_JDC_Line_1000_Quick_Start_Safety_Manual_EN_Rev_20231107-01_1.pdffiles/products/jdc-line-1000-product-data/JDC_Line_1000_User_Manual_EN_Rev_20240618-01.pdffiles/products/jdc-line-1000-product-data/GLP_JDCLine_500_1000_Pattern_Overview_Rev_20201209_copy_1.pdf
• DMX Charts: files/products/jdc-line-1000-product-data/JDC_Line_1000_DMX_Channel_Index_Rev_20240618-01.pdf
• Photometric Files: files/products/jdc-line-1000-product-data/GLP_JDCLine_500_Photometrics_Rev_20210805-1_1.zip
• Fixture Lib. Files: files/products/jdc-line-1000-product-data/GLP_JDCLine1000_Camsys_Rev20210412_1.zipfiles/products/jdc-line-1000-product-data/GLP_JDCLine1000_HOG_Rev20210621_1.zipfiles/products/jdc-line-1000-product-data/GLP_JDC_Line_1000_MA2__Rev20250226-1.zip
• CAD Files: files/products/jdc-line-1000-product-data/GLP_JDC_Line_500_1000_CAD_Rev20230918-1.zip
• Info Material Files: files/products/jdc-line-1000-product-data/GLP_JDC-Line.pdffiles/products/jdc-line-1000-product-data/JDC-Line_final_Rev20230914.pdf
• Header Image:
• Product Picture Gallery:



  JDC Line 1000



  JDC Line 1000



  JDC Line 1000



  JDC Line 1000

• Tender Text Files: files/products/jdc-line-1000-product-data/GLP_JDCLine_500_1000_Tendertext_EN_DE_Rev20210609-1_1.zip
• Firmware: files/products/jdc-line-1000-product-data/GLP_JDCLine_500_1000_Firmware_V1-0-0_Rev20240410-1.zip
• Product info:
  • Long product text (editor):

    The JDC Line is the new Hybrid highlight Product from GLP and combines a powerful strobe line with a never seen powerful LED pixel mapping device. There are a lot of Pixel-Mapping/Video-Sticks in the market but they all just offer the brightness of a typical video stick and the pixelpitch always has black areas between the pixel segments. The JDC Line is completely different and offers a much brighter RGB Pixel mapping effect mixed by a special 500 mm lens tube which gives great look and new design options.

    The pixel sements of the JDC Line measures The pixel sements of the JDC Line measures 25 mm in width. The segments are seemless next to each other, so that there are no blackout areas between the pixels. A super highlight feature: Each pixel segment can be split into upper and lower part which gives additional creative options. The second part of the fixture is a powerful strobe tube, well known from the JDC center beam LEDs. The JDC Strobe LEDs emit into the same lens tube as the RGB Pixel Mapping LEDs and also offer a segmentation of 25 mm for stunning dynamic effects. The idea to emit the powerful strobe and the RGB Pixel mapping output through the same lens tube creates a very nice look and avoids seeing ugly separate LEDs or light reflections from white face LEDs.

    The smart rigging accessories such as rigging bracket and alignment bracket provide a convenient handling of the product. The smart rigging accessories such as rigging bracket and alignment bracket provide a convenient handling of the product. Using the alignment bracket, multiple devices can be easily mechanically connected together while the rigging bracket allows an installation of rigging clamps on the top, button, and back side of the product. A clever airflow design allows the cooling of the fixture also when lying on the ground, installed between objects or on top of each other.

    , Short product description: RGB Pixel Segments and White strobe line, Segment Effect Engine, continuous alignment, optical filter options
• Anschlüsse:
  • Daten enthalten?: ja, Netzanschluss: Neutrik powerCON TRUE1 In/Out, Signalverbindung: Neutrik XLR 5-Pin In/Out, Neutrik etherCON In/Out
• Aufbau:
  • Daten enthalten?: ja, Eigenschaften: integrierte Griffe | magnetischer Frontscreen | Alignment Bracket, Gehäusefarbe: schwarz, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech, Schutzklasse: IP20
• Steuerung & Programmierung:
  • Daten enthalten?: ja, Control Modes: M1: RGBWStrobe | M2: WStrobe, RGBStrobe | M3: WStrobe, RGB Pixel | M4: RGBStrobe, W Pixel | M5: MultiPix | M6: MultiPix Advanced | M7: Multipix Quadpix, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, DMX Channels: M1: 32 | M2: 68 | M3: 168 | M4: 94 | M5: 196 | M6: 316 | M7: 78, Dimmerkurven: linear, soft, Fan Modes: regulated, high, medium, low, High-Res Channels: Intensity, Weitere Steuerungsoptionen: Splitt Pixel Segments, Einstellung und Adressierung: Multicolor-Grafikdisplay, 4 Button Menu Navigation, DMX, RDM, Geräte-Update: DMX Link via Dprog, Weißpunkte: White LED: 6.600 – 7.100 K (abhängig von Dimmer) | RGB LED: 6.500 K (voreingestellt, variierbar)
• Maße & Gewicht:
  • Daten enthalten?: ja, Tiefe: 201,5 mm / 7.93 in, Höhe: 74 mm / 2.9 in, Gewicht (netto): 12 kg / 26.46 lbs, Breite: 1.000 mm / 39.37 in
• Elektrische Spezifikationen:
  • Daten enthalten?: ja, Sicherung: T12A 250V 6x32mm, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 1.600 W
• Lichtquelle:
  • Daten enthalten?: ja, CRI: White LED: 78, Anzahl: 200x White LED | 400x RGB LED, Lebensdauer: 50.000 h, TLCI: White LED: 53, TM-30-15: White LED: 97 / 71, Typ: White Strobe LED | RGB LED
• Installation:
  • Daten enthalten?: ja, Befestigung: 4 Paar 1/4-Drehverschlüsse, 4 Ösen für Sicherungskabel, 2x Rigging Brackets mit 2 Paar 1/4-Drehverschlüssen, Ausrichtung: beliebig, Mindestabstand zu entzündlichen Materialien: 0,1 m, Mindestabstand zu beleuchteten Oberflächen: 1,0 m
• Optisches System:
  • Daten enthalten?: ja, beam angle: 150/64° half peak | 160/70° field angle | 160/88° cutoff angle, Frontlinse: rechteckig: 464,15 x 22 mm / 19.45 x 0.87 in, Licht-Output: White LED: 20.400 lm | RGBW LED: 42.100 lm
• Light Source:
  • CRI: White LED: 78, Count: 200x White LED | 400x RGB LED, Lifetime: 50,000 h, TLCI: White LED: 53, TM-30-15: White LED: 97 / 71, Type: White Strobe LED | RGB LED
• Thermische Spezifikationen:
  • Daten enthalten?: ja, Kühlung: Kombination aus Konvektions- und Zwangskühlung, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: 5 °C / 40 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In/Out, Signal connection: Neutrik XLR 5-Pin In/Out, Neutrik etherCON In/Out
• Construction:
  • Construction features: integrated handles | magnetic front screen | Alignment Bracket, Housing color: Black, Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates, Protection Rating: IP20
• Electrical Specifications:
  • Fuse: T12A 250V 6x32mm, Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 1,600 W
• Installation:
  • Mounting: 4 pairs of 1/4-turn locks, 4 eyelets for safety cable, 2x Rigging Brackets with 2 pairs of 1/4-turn locks, Orientation: any, min. distance to combustible materials: 0.1 m, min. distance to illuminated surfaces: 1.0 m
• Dimensions & Weight:
  • Depth: 201.5 mm / 7.93 in, Height: 74 mm / 2.9 in, Weight (netto): 12 kg / 26.46 lbs, Width: 1,000 mm / 39.37 in
• Optical System:
  • beam angle: 150/64° half peak | 160/70° field angle | 160/88° cutoff angle, Front lens: square: 464.15 x 22 mm / 19.45 x 0.87 in, Total Output: White LED: 20,400 lm | RGBW LED: 42,100 lm
• Control & Programming:
  • Control Modes: M1: RGBWStrobe | M2: WStrobe, RGBStrobe | M3: WStrobe, RGB Pixel | M4: RGBStrobe, W Pixel | M5: MultiPix | M6: MultiPix Advanced | M7: Multipix Quadpix, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, DMX Channels: M1: 32 | M2: 68 | M3: 168 | M4: 94 | M5: 196 | M6: 316 | M7: 78, Dimming curves: linear, soft, Fan Modes: regulated, high, medium, low, High-Res Channels: Intensity, Other control options: Splitt Pixel Segments, Setting and addressing: multicolor graphic display, 4 Button Menu Navigation, DMX, RDM, Software update: DMX Link via Dprog, White Points: White LED: 6,600 – 7,100 K (depends on dimmer level) | RGB LED: 6,500 K (default, changeable)
• Thermal Specifications:
  • Cooling Type: combined convection and forced air, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: 5 °C / 40 °F

• Hits: 169

Written by Elisabeth Riemesch on 28 June 2023. Posted in PD Event Lighting.

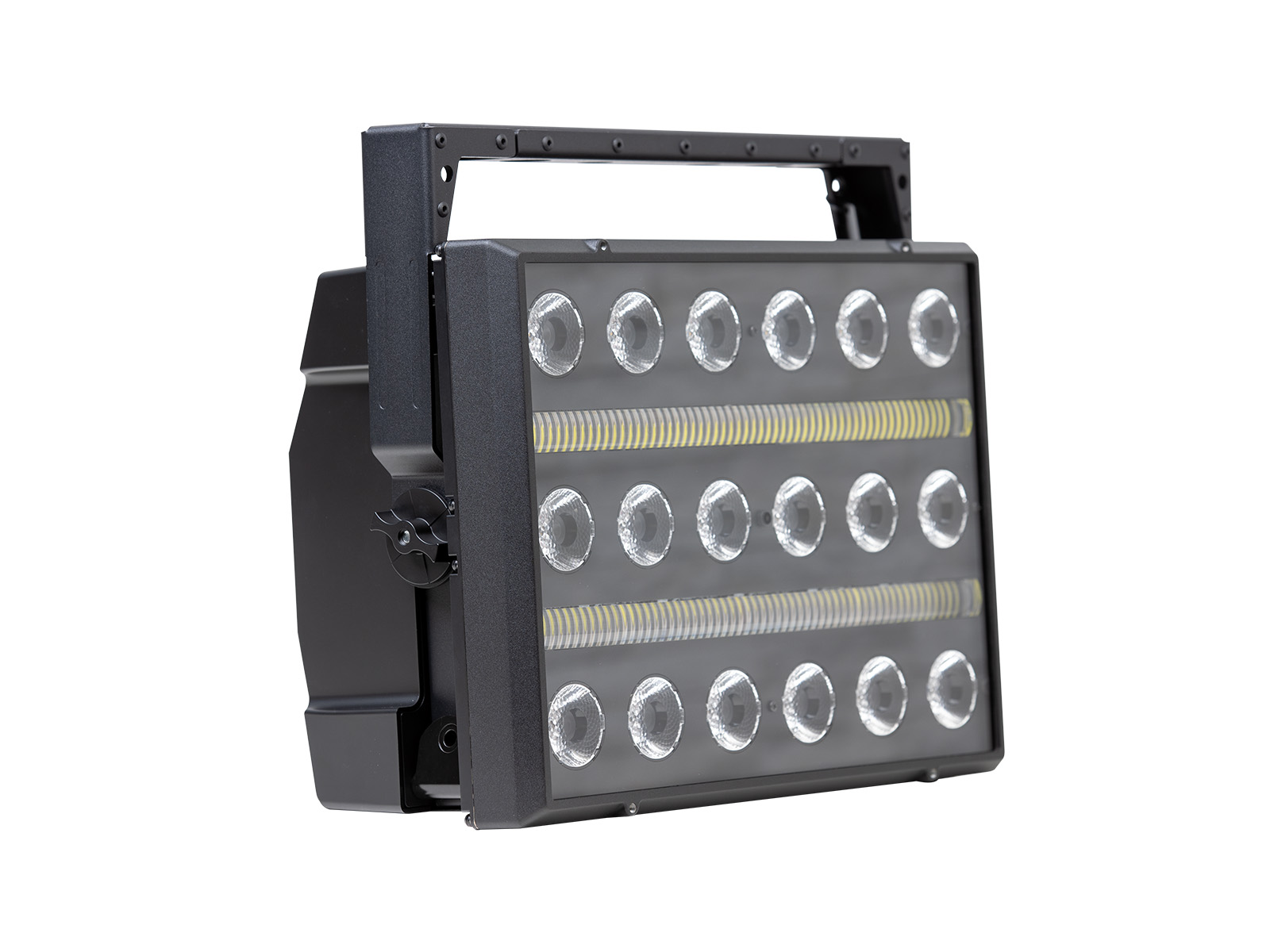

XDC1 IP Hybrid – Product Data

• Fixture Lib. Files: files/products/xdc1-ip-hybrid-product-data/GLP_XDC1_IP_Hybrid_MA2_Rev20220726-1.zip
• CAD Files: files/products/xdc1-ip-hybrid-product-data/GLP_XDC1_IP_Hybrid_CAD_Rev20220727-2.zipfiles/products/xdc1-ip-hybrid-product-data/GLP_XDC1_IP_Hybrid_Vectorworks_Rev20211028-1.zip
• Info Material Files: files/products/xdc1-ip-hybrid-product-data/GLP_XDC1-IP-Hybrid.pdffiles/products/xdc1-ip-hybrid-product-data/XDC1-IP-Hybrid_Datasheet.pdf
• Header Image:
• Product Picture Gallery:



  XDC1



  XDC1



  XDC1



  XDC1

• Product info:
  • Long product text (editor):

    The GLP XDC1 IP Hybrid merges a high-performance strobe with a very powerful wash light, offering superior colour quality—all packaged in a weatherproof IP65 housing. GLP thus meets the growing demand for powerful effect spotlights for large outdoor events that also offer very high colour quality and a wide colour spectrum.

    The XDC1 offers impressive light output and colour rendering quality based on the innovative colour mixing of the X5 (RGB plus the special GLP Lime) in combination with two extremely powerful white strobe lines for all applications that require particularly powerful performance.

    Just as with the fixtures in the new impression X5 Series, the XDC1 features GLP's proprietary iQ.Gamut colour algorithm. This ensures optimum light output with excellent colour rendering in any colour temperature. A total of 18 wash LEDs, with 40 W light output each, are available in three rows of six pixels each. The particularly narrow 10° optic ensures impressive mid-air effects, especially for applications at very long distances. The proven, extended colour functions, such as a referenced colour wheel, colour temperature control, colour quality control with desaturation, magenta/green shift etc. are of course also available in the XDC1. Thanks to the new tungsten channel, the weatherproof hybrid spotlight can also be used as a powerful audience blinder.

    The two high-performance strobe lines of the XDC1 offer up to 1,100 W of strobe power, sufficient to illuminate entire stadiums and arenas. The wide beam pattern of the strobe lines ensures maximum impact and the diffuse luminous flux so important for strobes.

    For even more dynamic impact, all 18 wash LEDs can be controlled individually in a second layer level. Here, depending on the mode selected, a wide range of static or dynamic pattern effects can be accessed. Alternatively, the pixels can be recorded with a media server via pixel mapping. These effects can be further enhanced by including the two strobe lines, each segmented into six zones. The combination of pixel control of wash LEDs and strobe lines gives designers maximum creative scope.

    Four integrated folding eyelets allow several units to be aligned vertically or horizontally. This allows the design of horizontal or vertical lines, which can be used to create gigantic light objects, e.g. for large events and festivals. The classification according to protection class IP65 makes the use of the XDC1 completely weather-independent, and renders visually unattractive weather protection devices of all kinds superfluous.

    For particularly easy installation, each unit is equipped with PowerCon True1 In and Out, DMX In and Out as well as two fail-safe EtherCon ports for ArtNet or sACN. The integrated NFC sensor with iQ.Mesh Module allows for particularly user-friendly configuration via the new GLP iQ.Service app.

    As an optional accessory, a stand is offered that can be conveniently attached to the bracket using the Camlock quick-release fastener. This allows the XDC1 to be quickly placed on the floor and aligned.

    The optionally available filter frame can be mounted without tools to adjust the optical beam angle. A selection of filter discs for six wash pixels each can be used to perfectly adjust the optical impression to individual needs. The light emission surfaces of the two strobe lines are not touched by the filter frame.

    , Short product description: Extremely powerful Strobe, 10° Wash ideal for long distances
• Zulassungen & Klassifizierungen:
  • Daten enthalten?: ja, Risk Group EN 62471: Risk Group 2
• Anschlüsse:
  • Daten enthalten?: ja, Netzanschluss: Neutrik powerCON TRUE1 In/Out, Signalverbindung: Neutrik XLR 5-Pin In/Out, Neutrik etherCON port A & B (failsafe)
• Aufbau:
  • Daten enthalten?: ja, Eigenschaften: Alignment System | Gewinde für externes Zubehör | kippbares Bracelet | gleichbleibender vertikaler Pixel Pitch (Wash), Gehäusefarbe: schwarz, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech, Schutzklasse: IP65
• Steuerung & Programmierung:
  • Daten enthalten?: ja, Control Modes: 7, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX (FPO), Art-Net, sACN, GLP iQ.Mesh, DMX Channels: M1: 21 | M2: 50 | M3: 58 | M4: 113 | M5: 80 | M6: 92 | M7: 53, Dimmerkurven: logarithmic, soft, S-Curve, Fan Modes: regulated, high, medium, low, minimum, High-Res Channels: Dimmer | Colormix, Weitere Steuerungsoptionen: Art-Net/sACN Node | Data Conversion | FPO (Flexible Protocol Option) | SW Fixture2Fixture Push, Power Modes: Dynamic, Max Strobe, Max Wash, Balanced, Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, internes Web-Interface, DMX, RDM, iQ.Service App, Geräte-Update: DMX Link via Dprog, GLP iQ.Mesh, Fixture2Fixture Push, internes Web-Interface, Subfixture Mode: normal, independent, Weißpunkte: Wash: Standard: 6.500 K | optional | 8.000 K | 5.600 K | 4.200 K | 3.200 K
• Maße & Gewicht:
  • Daten enthalten?: ja, Tiefe: 206,3 mm / 8.12 in, Höhe: 300 mm / 11.8 in, Gewicht (netto): 22,5 kg / 49.6 lbs, Breite (Arm zu Arm): 400 mm / 15.75 in
• Dynamische Effekte:
  • Daten enthalten?: ja, Farbmischung: RGB, RGBL, x;y, Color Mix Priority: verschiedene Einstellungen für Layer Priority, Farbrad: virtuell, 64 LEE referenzierte Farben, Regenbogen, CQC: High Output (HO), High Quality (HQ), Desaturation, CTC: variabel 2.500 – 10.000 K, Dimmer / Shutter: 0 – 100%, 16 bit, Flash Duration: normal | percentage, Flash Rate: Strobe | kontinuierlich offen | verschiedene Intensity Effects, Magenta/Grün-Korrektur: vorhanden, Pattern Effekte: 50 dynamische Pattern Macros mit Spezialeffekten
• Elektrische Spezifikationen:
  • Daten enthalten?: ja, Sicherung: T16A 250V 6x32mm, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 1.100 W, max. Anzahl Geräte auf einer Stromleitung: 1 bei 100 – 120 V, 60 Hz | 3 bei 200 – 240 V, 50 Hz
• Lichtquelle:
  • Daten enthalten?: ja, Anzahl: 120x White | 18x RGBL, Duv: perfekte Weißpunkt-Treffer mit niedrigen Duv Werten, LED Refresh Rate: Optimal (Default) | High 1 | High 2 | Max, Lebensdauer: 50.000 h, TLCI: Wash: 6.500 K: 90 | 3.200 K: 75, TM-30-15: Wash: 6.500 K: 87 / 105 | 3.200 K: 85 / 110, Typ: White Flash LED | RGBL Wash LED
• Installation:
  • Daten enthalten?: ja, Standort: indoor, outdoor, Befestigung: 1 Paar 1/4-Drehverschlüsse, Ösen für Sicherungskabel, 4 Ösen für hängende Installation, 3x 13 mm Loch für Rigging Clamp, Ausrichtung: beliebig
• Optisches System:
  • Daten enthalten?: ja, max. beam angle: 10° (Wash) | 140°/45° (Strobe), Licht-Output: bis zu 85.100 lm
• Light Source:
  • Count: 120x White | 18x RGBL, Duv: perfect white point matches with low Duv values, LED Refresh Rate: Optimal (Default) | High 1 | High 2 | Max, Lifetime: 50,000 h, TLCI: Wash: 6,500 K: 90 | 3,200 K: 75, TM-30-15: Wash: 6,500 K: 87 / 105 | 3,200 K: 85 / 110, Type: White Flash LED | RGBL Wash LED
• Dynamic Effects:
  • Color Mixing: RGB, RGBL, x;y, Color Mix Priority: different Layer Priority settings, Color wheel: virtual, 64 LEE referenced colors, rainbow, CQC: High Output (HO), High Quality (HQ), Desaturation, CTC: variable 2,500 – 10,000 K, Dimmer / Shutter: 0 – 100%, 16 bit, Flash Duration: normal | percentage, Flash Rate: Strobe | continuous open | different Intensity Effects, iQ.Gamut: Full, Rec.709, Rec.2020, DCI P3.65, Magenta/Green-Correction: Yes, Pattern Effects: 50 dynamic pattern macros with special effects, Tungsten Simulation: 8x linked to fix CCT | 8x relative to Colormix
• Thermische Spezifikationen:
  • Daten enthalten?: ja, Kühlung: Kombination aus Konvektions- und Zwangskühlung, Überhitzungsschutz: automatisch, Gesamtwärmeabgabe: 3.760 BTU/hr
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In/Out, Signal connection: Neutrik XLR 5-Pin In/Out, Neutrik etherCON In/Out (failsafe)
• Construction:
  • Construction features: Alignment System | threads for external accessory | tiltable bracelet | same vertical Pixel Pitch (Wash), Housing color: Black, Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates, Protection Rating: IP65
• Electrical Specifications:
  • Fuse: T16A 250V 6x32mm, Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 1,100 W, max. number of products per current line: 1 at 100 – 120 V, 60 Hz | 3 at 200 – 240 V, 50 Hz
• Installation:
  • Location: Indoor, Outdoor, Mounting: 1 pair of 1/4-turn locks, eyelets for safety cable, 4 eyelets for hanging installation, 3x 13 mm hole for Rigging Clamp, Orientation: any
• Dimensions & Weight:
  • Depth: 206.3 mm / 8.12 in, Height: 300 mm / 11.8 in, Weight (netto): 22.5 kg / 49.6 lbs, Width (across yoke): 400 mm / 15.75 in
• Optical System:
  • max. beam angle: 10° (Wash) | 140°/45° (Strobe), Total Output: up to 85,100 lm
• Control & Programming:
  • Control Modes: 7, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX (FPO), Art-Net, sACN, GLP iQ.Mesh, DMX Channels: M1: 21 | M2: 50 | M3: 58 | M4: 113 | M5: 80 | M6: 92 | M7: 53, Dimming curves: logarithmic, soft, S-Curve, Fan Modes: regulated, high, medium, low, minimum, High-Res Channels: Dimmer | Colormix, Other control options: Art-Net/sACN Node | Data Conversion | FPO (Flexible Protocol Option) | SW Fixture2Fixture Push, Power Modes: Dynamic, Max Strobe, Max Wash, Balanced, Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, internal web interface, DMX, RDM, iQ.Service App, Software update: DMX Link via Dprog, GLP iQ.Mesh, Fixture2Fixture Push, internal web interface, Subfixture Mode: normal, independent, White Points: Wash: Default: 6,500 K | optional: 8,000 K | 5,600 K | 4,200 K | 3,200 K
• Thermal Specifications:
  • Cooling Type: combined convection and forced air, Overheating protection: automatic, Total heat dissipation: 3,760 BTU/hr
• Approvals & Classifications:
  • Risk Group EN 62471: Risk Group 2

• Hits: 159

Written by Elisabeth Riemesch on 27 June 2023. Posted in PD Event Lighting.

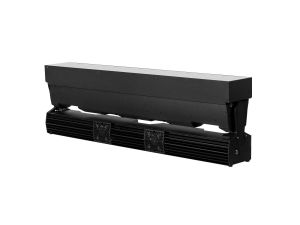

impression X5 IP Bar 1000 – Product Data

• Manual Files: files/products/impression-x5-ip-bar-1000-product-data/GLP_impression_X5_IP_Bar_1000_Quick_Start_Safety_Manual_Rev_20231018-01.pdffiles/products/impression-x5-ip-bar-1000-product-data/GLP_impression_X5_IP_Bar_1000_User_Manual_EN_Rev_20240207-01.pdf
• DMX Charts: files/products/impression-x5-ip-bar-1000-product-data/GLP_impression_X5_IP_Bar_1000_DMX_Channel_Index_EN_Rev_20240207-01.pdf
• Photometric Files: files/products/impression-x5-ip-bar-1000-product-data/GLP_impression_X5_IP_Bar_1000_Report_RGBL_Medium_copy_1.pdf
• Fixture Lib. Files: files/products/impression-x5-ip-bar-1000-product-data/GLP_impression_X5_IP_BAR_1000_MA2_Fixture_Profiles_Rev_20230110-1.zip
• CAD Files: files/products/impression-x5-ip-bar-1000-product-data/GLP_impression_X5_IP_Bar_1000_CAD_Rev_20240422-1.zipfiles/products/impression-x5-ip-bar-1000-product-data/GLP_impression_X5_IP_Bar_1000_Vectorworks_Rev20230526-1.zipfiles/products/impression-x5-ip-bar-1000-product-data/GLP_impression_X5_IP_Bar_1000_Filter_CAD_Rev_20231012-1.zip
• Info Material Files: files/products/impression-x5-ip-bar-1000-product-data/GLP_impression-X5-IP-Bar.pdffiles/products/impression-x5-ip-bar-1000-product-data/impression-X5-IP-Bar_datasheet_Rev20250120.pdf
• Header Image:
• Product Picture Gallery:



  impression X5 IP Bar



  impression X5 IP Bar



  impression X5 IP Bar



  impression X5 IP Bar

• Tender Text Files: files/products/impression-x5-ip-bar-1000-product-data/GLP_impression_X5_IP_Bar_1000_Tendertext_EN_DE_Rev_20250313-1.zip
• Product info:
  • Long product text (editor):

    The GLP impression X5 IP Bar 1000 is an IP65 rated, linear LED batten with 18 powerful 40 W RGBL LED's, a wide zoom range, and the new GLP iQ.Gamut color calibration algorithm that creates perfect white spectrums with excellent color rendering.

    The new squared lens design ensures maximum lumen efficiency and gives an unprecedented curtain of light at its narrowest angle of just 4.5°, and delivering smooth and homogenous washes all the way out to its widest 60° wash.

    As a part of the new GLP X5 family it offers a wide feature package, including selectable calibrated white points, a tungsten simulation channel, magenta / green correction, virtual color wheel and variable CTC, along with twin layer effects with plenty of dynamic pattern macros.

    The impression X5 IP Bar 1000 offers our patented fast tilt movement in combination with seamless pixel pitch across fixtures, and features wired and wireless control as standard.

    The impression X5 IP Bar 1000’s enclosure is just as suitable for indoor use on the stage to protect against confetti, fog, pyro and dust.

    , Short product description: IP65 rated, linear LED batten, 18x 40 W RGBL LED's with up to 10,000 lm output
• Zulassungen & Klassifizierungen:
  • Daten enthalten?: ja, Risk Group EN 62471: Risk Group 2
• Anschlüsse:
  • Daten enthalten?: ja, Netzanschluss: Neutrik powerCON TRUE1 In/Out, Signalverbindung: Neutrik XLR 5-Pin In/Out, Neutrik etherCON port A & B (failsafe)
• Aufbau:
  • Daten enthalten?: ja, Eigenschaften: Tilt-Lock-System | Alignment Systen | Haltegriffe zum Tragen | Gewinde für externes Zubehör | Einschub-Filtersystem, Gehäusefarbe: schwarz, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech, Schutzklasse: IP65
• Steuerung & Programmierung:
  • Daten enthalten?: ja, Control Modes: M1: Basic | M2: Normal | M3: Segment | M4: Multipix Advanced | M5: Multipix Compressed | M6: Multipix Compressed RGBL, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX (FPO), Art-Net, sACN, GLP iQ.Mesh, DMX Channels: M1: 20 | M2: 33 | M3: 48 | M4: CH84 | M5: CH63 | M6: CH81, Dimmerkurven: linear, soft, S-Curve, Fan Modes: regulated, high, medium, low, minimum, High-Res Channels: Tilt | Intensity Global | Colormix, kein Signal: Hold, Weitere Steuerungsoptionen: Art-Net/sACN Node | Data Conversion | FPO Port (Flexible Protocol Option) | SW Fixture2Fixture Push, PWM: Low | Optimal | High 1 | High 2, Performance Modes: Fast, Normal (Balanced), Smooth, Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, internes Web-Interface, DMX, RDM, iQ.Service App, GLP iQ.Mesh, NFC über iQ.Service App, 1 Scene Stand Alone, Geräte-Update: DMX Link via Dprog, GLP iQ.Mesh, Subfixture Mode: normal, independent, Weißpunkte: optional: 8.000 K | 5.600 K | 4.200 K | 3.200 K
• Maße & Gewicht:
  • Daten enthalten?: ja, Tiefe (Kopf gerade hoch): 143,5 mm / 5.65 in, Höhe: 268,5 mm / 10.57 in, Höhe (Kopf gerade hoch): 316 mm / 12.44 in, Gewicht (netto): 27 kg / 59.52 lbs, Breite: 1.000 mm / 39.4 in, Mindestabstand Mitte zu Mitte: 1.000 mm / 39.4 in
• Dynamische Effekte:
  • Daten enthalten?: ja, Farbmischung: RGB, RAW, x;y, Farbrad: virtuell, 64 LEE referenzierte Farben, Regenbogen, CQC: High Output (HO), High Quality (HQ), Desaturation, CTC: variabel 2.500 – 10.000 K, Dimmer / Shutter: 0 – 100%, 16 bit, Strobe, Pulse, Sparkel, etc., iQ.Gamut: Full, Rec.2020, DCI P3.65, Magenta/Grün-Korrektur: vorhanden, Pattern Effekte: 50 dynamische Pattern Macros mit Spezialeffekten, Zoom speed: schnelle Zoom-Mechanik
• Elektrische Spezifikationen:
  • Daten enthalten?: ja, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 750 W
• Lichtquelle:
  • Daten enthalten?: ja, CRI: 8.000 K: 87 | 6.500 K: 86+ | 3.200 K: 84+, CT: 6.500 K, Anzahl: 18, Duv: perfekte Weißpunkt-Treffer mit niedrigen Duv Werten, LED Refresh Rate: Low: 550 Hz, Optimal: dynamic PWM Algorithm, High 1: 4.600 Hz, High 2: 13.000 Hz, alle Werte gerundet; für genauere Informationen GLP Support kontaktieren, Lebensdauer: 50.000 h, Leistung: 40 W, TLCI: 8.000 K: 90 | 6.500 K: 98+ | 3.200 K: 74+, TM-30-15: 6.500 K: 87/105 | 3.200 K: 85/110, Typ: RGBL LED
• Installation:
  • Daten enthalten?: ja, Standort: indoor, outdoor, Befestigung: 2 Ösen für Sicherungskabel, 2x Rigging Brackets mit 2 Paar 1/4-Drehverschlüssen, Ausrichtung: beliebig
• Bewegung:
  • Daten enthalten?: ja, Tilt Angle: 195°, 16 bit
• Optisches System:
  • Daten enthalten?: ja, Frontlinse: 18 einzelne Linsen: 48 x 48 mm | gesamt: 980 x 120 mm, max. Zoom: 60°, min. Zoom: 4,5°, Maximale Lichtintensität: 1,12 Mcd, Licht-Output: 7.500 lm, Zoomverhältnis: 1:13
• Light Source:
  • CRI: 8,000 K: 87 | 6,500 K: 86+ | 3,200 K: 84+, CT: 6,500 K, Count: 18, Duv: perfect white point matches with low Duv values, LED Refresh Rate: Low: 550 Hz, Optimal: dynamic PWM Algorithm, High 1: 4,600 Hz, High 2: 13,000 Hz, all values rounded; for detailed information, contact GLP Supprt, Lifetime: 50,000 h, Power: 40 W, TLCI: 8,000 K: 90 | 6,500 K: 98+ | 3,200 K: 74+, TM-30-15: 6,500 K: 87/105 | 3,200 K: 85/110, Type: RGBL LED
• Dynamic Effects:
  • Color Mixing: RGB, RAW, x;y, Color Mix Priority: different Layer Priority settings, Color wheel: virtual, 64 LEE referenced colors, rainbow, CQC: High Output (HO), High Quality (HQ), Desaturation, CTC: variable 2,500 – 10,000 K, Dimmer / Shutter: 0 – 100%, 16 bit, Strobe, Pulse, Sparkel, etc., Magenta/Green-Correction: Yes, Pattern Effects: 50 dynamic pattern macros with special effects, Tungsten Simulation: 8x linked to fix CCT | 8x relative to Colormix, Zoom speed: fast zoom mechanics
• Thermische Spezifikationen:
  • Daten enthalten?: ja, Kühlung: Kombination aus Konvektions- und Zwangskühlung, Überhitzungsschutz: automatisch, Gesamtwärmeabgabe: 2.600 BTU/hr, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: -10 °C / 14 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In/Out, Signal connection: Neutrik XLR 5-Pin In/Out, Neutrik etherCON port A & B (failsafe)
• Construction:
  • Construction features: Tilt-Lock-System | Alignment System | Handgaps for carrying | Threads for external accessory | Smart Slide-In Filter System, Housing color: Black, Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates, Protection Rating: IP65
• Movement:
  • Tilt Angle: 195°, 16 bit
• Electrical Specifications:
  • Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 750 W
• Installation:
  • Location: Indoor, Outdoor, Mounting: 2 eyelets for safety cable, 2x Rigging Brackets with 2 pairs of 1/4-turn locks, Orientation: any
• Dimensions & Weight:
  • Depth (head straight up): 143.5 mm / 5.65 in, Height: 268.5 mm / 10.57 in, Height (head straight up): 316 mm / 12.44 in, Weight (netto): 27 kg / 59.52 lbs, Width (across yoke): 1,000 mm / 39.4 in, min. center-to-center-distance: 1,000 mm / 39.4 in
• Optical System:
  • Front lens: 18 single lenses: 48 x 48 mm | aperture: 980 x 120 mm, max. Zoom: 60°, min. Zoom: 4.5°, Peak Luminous Intensity: 1.12 Mcd, Total Output: 7,500 lm, Zoom ratio: 1:13
• Control & Programming:
  • Control Modes: M1: Basic | M2: Normal | M3: Segment | M4: Multipix Advanced | M5: Multipix Compressed | M6: Multipix Compressed RGBL, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX (FPO), Art-Net, sACN, GLP iQ.Mesh, DMX Channels: M1: 20 | M2: 33 | M3: 48 | M4: CH84 | M5: CH63 | M6: CH81, Dimming curves: linear, soft, S-Curve, Fan Modes: regulated, high, medium, low, minimum, High-Res Channels: Tilt | Intensity Global | Colormix, Other control options: Art-Net/sACN Node | Data Conversion | FPO Port (Flexible Protocol Option) | SW Fixture2Fixture Push, PWM: Low | Optimal | High 1 | High 2, Performance Modes: Fast, Normal (Balanced), Smooth, Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, iQ.Service App, GLP iQ.Mesh, NFC via iQ.Service App, 1 Scene Stand Alone, Software update: DMX Link via Dprog, GLP iQ.Mesh, Subfixture Mode: normal, independent, White Points: optional: 8,000 K | 5,600 K | 4,200 K | 3,200 K
• Thermal Specifications:
  • Cooling Type: combined convection and forced air, Overheating protection: automatic, Total heat dissipation: 2,600 BTU/hr, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: -10 °C / 14 °F
• Approvals & Classifications:
  • Risk Group EN 62471: Risk Group 2

IP65 rated

• Hits: 498

Written by Elisabeth Riemesch on 27 June 2023. Posted in PD Event Lighting.

impression X5 Compact – Product Data

• Manual Files: files/products/impression-x5-compact-product-data/GLP_impression_X5_Compact_Safety_Manual_EN_Rev_20231016-01_1.pdffiles/products/impression-x5-compact-product-data/GLP_impression_X5_Compact_User_Manual_EN_Rev_20230928-01.pdf
• DMX Charts: files/products/impression-x5-compact-product-data/GLP_impression_X5_Compact_DMX_Channel_Index_EN_Rev_20230918-01.pdf
• Photometric Files: files/products/impression-x5-compact-product-data/GLP_impression_X5_Compact_Photomentrics_Rev20220726-2.zip
• Fixture Lib. Files: files/products/impression-x5-compact-product-data/GLP_impression_X5_Compact_MA2_Rev20240919-1.zipfiles/products/impression-x5-compact-product-data/glpimpression_x5_compact_m6m6_-_multipix_compressed_rgbl.zip
• CAD Files: files/products/impression-x5-compact-product-data/GLP_impression_X5_Compact_Vectorworks_Rev20230109-1.zipfiles/products/impression-x5-compact-product-data/GLP_impression_X5_Compact_CAD_Rev20241120-1.zip
• Info Material Files: files/products/impression-x5-compact-product-data/GLP_impression-X5-Compact.pdffiles/products/impression-x5-compact-product-data/impression-X5-Compact_Rev20250120.pdf
• Header Image:
• Product Picture Gallery:

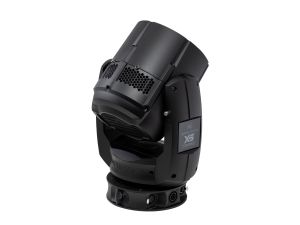

  impression X5 Compact



  impression X5 Compact



  impression X5 Compact



  impression X5 Compact



  impression X5 Compact

• Tender Text Files: files/products/impression-x5-compact-product-data/GLP_impression_X5_Compact_Tendertext_EN_DE_Rev20250313-1.zip
• Product info:
  • Long product text (editor):

    The GLP impression X5 Compact uses 7 powerful 40 Watt RGBL LED’s to give an incredible output with increased color gamut.

    GLP’s new iQ.Gamut calibration algorithm ensures the impression X5 Compact creates clean white points with CRI 90 at 6,500 K and the ability to switch to other fixed color temperatures instantly, all calibrated exactly to the black body line.

    With new super-fast zoom mechanics, the impression X5 Compact offers a 16:1 range running from 3.6° to 66° with homogenous light distribution across its entire range.

    A new front face with a circular design offers a fresh modern look, a round aperature and has been designed to include geometric patterns for great looking Pixel mapping effects.

    The impression X5 Compact comes with an extensive feature package, including a virtual color wheel with 64 referenced LEE Filters, a new Color Quality Control, Magenta / Green Correction, a Tungsten Simulation and Effect Channel and a double layer effect option.

    Featuring GLP’s trademark baseless design, the impression X5 Compact weighs just 7.5 kg / 16.6 lbs. Its design also allows static front accessories to be attached.

    The impression X5 Compact can be controlled via DMX, ArtNet or sACN and can be set up using Near Field Control.

    , Short product description: 7 powerful RGBL LED's for stunning Color rendering
• Anschlüsse:
  • Daten enthalten?: ja, Netzanschluss: Neutrik powerCON TRUE1 In/Out, Signalverbindung: Neutrik XLR 5-Pin In/Out, Neutrik etherCON port A & B (failsafe)
• Aufbau:
  • Daten enthalten?: ja, Eigenschaften: baseless Design | Tilt-Lock-System | gebaut für externes Zubehör (Egg Crate; Tubus, etc.) | Anbringung für optionales Zubehör (Filter Frame, Barndoor), Gehäusefarbe: schwarz, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech, Schutzklasse: IP20
• Steuerung & Programmierung:
  • Daten enthalten?: ja, Control Modes: M1: Basic | M2: Normal | M3: Segment | M4: Multipix Advanced | M5: Multipix Compressed RGB | M6: Multipix Compressed RGBL, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, GLP iQ.Mesh, DMX Channels: M1: CH22 | M2: CH33 | M3: CH36 | M4: CH51 | M5: CH32 | M6: CH39, Dimmerkurven: linear, soft, S-Curve, Fan Modes: regulated, high, medium, low, High-Res Channels: Intensity | Pan | Tilt | Colormix, kein Signal: Blackout, Hold, Stand Alone Scene, Weitere Steuerungsoptionen: Art-Net/sACN Node | Data Conversion | SW Fixture2Fixture Push, PWM: Low | Optimal | High 1 | High 2, Performance Modes: Fast, Normal (Balanced), Smooth, Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, DMX, RDM, GLP iQ.Mesh, NFC über iQ.Service App, Geräte-Update: DMX Link via Dprog, GLP iQ.Mesh, Fixture2Fixture Push, Subfixture Mode: normal, independent, Weißpunkte: Standard: 6.500 K | optional: 8.000 K | 5.600 K | 4.200 K | 3.200 K
• Maße & Gewicht:
  • Daten enthalten?: ja, Tiefe: 183 mm / 7.20 in, Höhe: 337 mm / 13.27 in, Gewicht (netto): 7,5 kg / 16.6 lbs, Breite (Arm zu Arm): 250 mm / 9.84 in
• Dynamische Effekte:
  • Daten enthalten?: ja, Color Mix Priority: verschiedene Einstellungen für Layer Priority, Farbrad: virtuell, 64 LEE referenzierte Farben, CQC: High Output (HO), High Quality (HQ), Desaturation, CTC: variabel 2.500 – 10.000 K, Dimmer / Shutter: 0 – 100%, 16 bit, Strobe, Pulse, Sparkel, etc., iQ.Gamut: Full, Rec.709, Rec.2020, Magenta/Grün-Korrektur: vorhanden, Pattern Effekte: 50 dynamische Pattern Macros mit Spezialeffekten, Tungsten Simulation: 8 auswählbare Kurven, Zoom speed: superschnelle Zoom-Mechanik, motorisiert
• Elektrische Spezifikationen:
  • Daten enthalten?: ja, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 350 W
• Lichtquelle:
  • Daten enthalten?: ja, CRI: 6.500 K: 90 | 3.200 K: 85, Anzahl: 7, Duv: perfekte Weißpunkt-Treffer mit niedrigen Duv Werten, LED Refresh Rate: Low: 550 Hz, Optimal: dynamic PWM Algorithm, High 1: 4.600 Hz, High 2: 13.000 Hz, alle Werte gerundet; für genauere Informationen GLP Support kontaktieren, Lebensdauer: 50.000 h, Leistung: 40 W, TLCI: 6.500 K: 90 | 3.200 K: 75, TM-30-15: 6.500 K: 87 / 105 | 3.200 K: 85 / 110, Typ: RGBL LED
• Installation:
  • Daten enthalten?: ja, Standort: indoor, Befestigung: 1 Paar 1/4-Drehverschlüsse, 2 Ösen für Sicherungskabel, M10 Gewinde, Ausrichtung: beliebig
• Bewegung:
  • Daten enthalten?: ja, Pan Angle: normal 540°, 16 Bit Auflösung | ausgefahren: 650°, Tilt Angle: 236°, 16 Bit Auflösung
• Optisches System:
  • Daten enthalten?: ja, Durchmesser Lichtaustrittsfläche: 158 mm, max. Zoom: 66°, min. Zoom: 3,6°, Maximale Lichtintensität: 650 kcd, Licht-Output: bis zu 3.980 lm, Zoomverhältnis: 1:16
• Light Source:
  • Count: 7, Duv: perfect white point matches with low Duv values, LED Refresh Rate: Low: 550 Hz, Optimal: dynamic PWM Algorithm, High 1: 4,600 Hz, High 2: 13,000 Hz, all values rounded; for detailed information, contact GLP Supprt, Lifetime: 50,000 h, Power: 40 W, TLCI: 6,500 K: 90 | 3,200 K: 75, TM-30-15: 6,500 K: 87 / 105 | 3,200 K: 85 / 110, Type: RGBL LED
• Dynamic Effects:
  • Color Mixing: CMY, RGBL, x;y, Color Mix Priority: different Layer Priority settings, Color wheel: virtual, 64 LEE referenced colors, rainbow, CQC: High Output (HO), High Quality (HQ), Desaturation, CTC: variable 2,500 – 10,000 K, Dimmer / Shutter: 0 – 100%, 16 bit, Strobe, Pulse, Sparkel, etc., iQ.Gamut: Full, Rec.709, Rec.2020, Magenta/Green-Correction: Yes, Pattern Effects: 50 dynamic pattern macros with special effects, Tungsten Simulation: 8 selectable curves, Zoom speed: super fast zoom mechanics
• Thermische Spezifikationen:
  • Daten enthalten?: ja, Kühlung: Kombination aus Konvektions- und Zwangskühlung, Gesamtwärmeabgabe: 1.200 BTU/h, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: 5 °C / 40 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In/Out, Signal connection: Neutrik XLR 5-Pin In/Out, Neutrik etherCON port A & B (failsafe)
• Construction:
  • Construction features: prepared for external accessories (Egg Crate, Tubus, etc.) | holder for optional accessories (Filter, Barndoor, etc) | Tilt-Lock-System | baseless design, Housing color: Black, Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates, Protection Rating: IP20
• Movement:
  • Pan Angle: normal: 540°, 16 bit | extended: 650°, Tilt Angle: 236°, 16 bit
• Electrical Specifications:
  • Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 350 W
• Installation:
  • Location: Indoor, Mounting: 1 pair of 1/4-turn locks, 2 eyelets for safety cable, M10 thread, Orientation: any
• Dimensions & Weight:
  • Depth: 183 mm / 7.20 in, Height: 337 mm / 13.27 in, Width (across head): 250 mm / 9.84 in, Width (with bracket): 7.5 kg / 16.6 lbs
• Optical System:
  • Light aperature diameter: 158 mm / 6.2 in, max. Zoom: 66°, min. Zoom: 3.6°, Peak Luminous Intensity: 650 kcd, Total Output: up to 3,980 lm, Zoom ratio: 1:16
• Control & Programming:
  • Control Modes: M1: Basic | M2: Normal | M3: Segment | M4: Multipix Advanced | M5: Multipix Compressed RGB | M6: Multipix Compressed RGBL, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, GLP iQ.Mesh, DMX Channels: M1: CH22 | M2: CH33 | M3: CH36 | M4: CH51 | M5: CH32 | M6: CH39, Dimming curves: linear, soft, S-Curve, Fan Modes: regulated, high, medium, low, High-Res Channels: Intensity | Pan | Tilt | Colormix, No signal: Blackout, Hold, Stand Alone Scene, Other control options: Art-Net/sACN Node | Data Conversion | SW Fixture2Fixture Push, PWM: Low | Optimal | High 1 | High 2, Performance Modes: Fast, Normal (Balanced), Smooth, Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, GLP iQ.Mesh, NFC via iQ.Service App, Software update: DMX Link via Dprog, GLP iQ.Mesh, Fixture2Fixture Push, Subfixture Mode: normal, independent, White Points: Default: 6,500 K | optional: 8,000 K | 5,600 K | 4,200 K | 3,200 K
• Thermal Specifications:
  • Cooling Type: combined convection and forced air, Total heat dissipation: 1,200 BTU/h, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: 5 °C / 40 °F

• Hits: 83

Written by Elisabeth Riemesch on 27 June 2023. Posted in PD Event Lighting.

impression X5 – Product Data

• Manual Files: files/products/impression-x5-product-data/GLP_impression_X5_Safety_Manual_EN_Rev_20231011-01.pdffiles/products/impression-x5-product-data/GLP_impression_X5_User_Manual_EN_Rev_20240207-01.pdf
• DMX Charts: files/products/impression-x5-product-data/GLP_impression_X5_DMX_Channel_Index_EN_Rev_20240424-01.pdf
• Photometric Files: files/products/impression-x5-product-data/GLP_impression_X5_Photometrics_Rev20221019-01.zip
• Fixture Lib. Files: files/products/impression-x5-product-data/GLP_impression_X5_MA2_Rev20240618-1.zip
• CAD Files: files/products/impression-x5-product-data/GLP_impression_X5_CAD_Rev20240202-1.zipfiles/products/impression-x5-product-data/GLP_impression_X5_Vectroworks_2018-2023_Rev20221201-1.zipfiles/products/impression-x5-product-data/GLP_impression_X5_CAD_Egg_Crate_Rev20220614-1.zipfiles/products/impression-x5-product-data/GLP_impression_X5_CAD_Omega_Bracket_with_Handle_Rev20220614-1.zipfiles/products/impression-x5-product-data/GLP_impression_X5_CAD_Soft_Diffusor_Rev20220614-1.zip
• Info Material Files: files/products/impression-x5-product-data/Flyer_X5_digi_Rev20230901.pdffiles/products/impression-x5-product-data/GLP_impression-X5.pdffiles/products/impression-x5-product-data/impression-X5_datasheet_Rev20241010.pdf
• Header Image:
• Product Picture Gallery:









• Tender Text Files: files/products/impression-x5-product-data/GLP_impression_X5_Tendertext_EN_DE_Rev_20250313-1.zip
• Product info:
  • Long product text (editor):

    The GLP impression X5 is the next generation of high performance, professional LED washlights. Building on the legacy of its highly renowned predecessors, it incorporates cutting edge technology with extensive user input.

    The 19 powerful and exclusive 40 Watt LEDs provide enormous power and allow the fixture to penetrate through even the most difficult lighting environments.

    The light source at the heart of the impression X5 was developed specifically to offer an expanded and more comprehensive color gamut. Incorporating a brand new algorithm, called iQ.Gamut, the impression X5 is able to deliver accuracy, quality and consistency on every occasion. White points are calibrated perfectly to the black body line and the expanded gamut can be accessed via three different color control modes, depending on user preference. Beyond standard mixing, a virtual color wheel is included with 64 referenced LEE color filters.

    Each LED source in the impression X5 can be individually controlled for full pixel mapping effects and a comprehensive effects section is included that has twin layers and many dynamic pattern macros.

    Using the new iQ.Gamut algorithm, the impression X5 creates perfectly calibrated white spectrum outputs with CRI 90 at 6,500 Kelvin and the ability to select other fixed white points down to 3,200 Kelvin, maintaining a high CRI of 85+. Color temperature changes to the output – whether in white or color – can be achieved through a separate, dedicated channel. Further settings for comprehensive control are standard and include Magenta/Green-Shift and a Tungsten Simulation mode with 2x5 settings for different simulations.

    With new super-fast zoom mechanics, the impression X5 offers a staggering 1:16 range running from a punchy 3.5° to 63° with homogenous light distribution across its entire range and without visible hotspots.

    A new front face with a circular design has been conceived to include geometric patterns for great looking effects without any effort.

    Featuring GLP’s trademark Baseless Design, the impression X5 weighs just 13.3 kg / 29.3 lbs, and since it is able to rig in any orientation with the X5 Bracket, the impression X5 looks elegant in any environment. The impression X5 has been designed for use in live concerts, television, film and broadcast, theatre and musicals, live events, exhibitions, music festivals, houses of worship and other application settings, and can easily be mounted into set pieces.

    Built-in accessory mountings on the front of the impression X5 allow users to easily add front accessories such as top hats or honeycomb shields.

    16-bit movement, with speeds that go from silent to breakneck speed, the impression X5 runs through 540°/650° of Pan and 220° of Tilt with full feedback control.

    The impression X5 can be controlled via DMX, ArtNet or sACN and has an integrated Near Field Control Sensor for setup and adjustments from a smart device. Also onboard is a GLP iQ.Service Module, compatible with the GLP iQ.Service App, and the new GLP FPO (Flexible Protocol Option) Port for alternative control protocol options.

    Additional features include: variable PWM settings, auto ranging power input, multiple performance modes, failsafe ethernet connectors and much more.

    With its meticulous attention to detail, output and control, and with the inclusion of extensive knowledge and market input, the impression X5 truly represents a breakthrough in the professional LED washlight market.

    , Short product description: 19 powerful RGBL LED's for stunning Color rendering
• Anschlüsse:
  • Daten enthalten?: ja, Netzanschluss: Neutrik powerCON TRUE1 In/Out, Signalverbindung: Neutrik XLR 5-Pin In, Neutrik etherCON port A & B (failsafe)
• Aufbau:
  • Daten enthalten?: ja, Eigenschaften: gebaut für externes Zubehör (Egg Crate, Tubus, etc.) | Tilt-Lock-System | baseless Design | GLP FX.Port, Gehäusefarbe: schwarz, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech, Schutzklasse: IP20
• Steuerung & Programmierung:
  • Daten enthalten?: ja, Control Modes: M1: Basic | M2: Normal | M3: Segment | M4: Multipix Advanced | M5: Multipix Compressed RGB | M6: Multipix Compressed RGBL, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX (FPO), Art-Net, sACN, GLP iQ.Mesh, DMX Channels: M1: 24 | M2: 35 | M3: 41 | M4: 89 | M5: 70 | M6: 89, Dimmerkurven: linear, soft, S-Curve, Fan Modes: regulated, high, medium, low, High-Res Channels: Pan | Tilt | Intensity | Colormix, Weitere Steuerungsoptionen: Art-Net/sACN Node | Data Conversion | NFC | FPO Port (Flexible Protocol Option), PWM: Low | Optimal | High 1 | High 2, Performance Modes: Fast, Normal (Balanced), Smooth, Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, DMX, RDM, iQ.Service App, 1 Scene Stand Alone, Geräte-Update: DMX Link via Dprog, GLP iQ.Mesh, Subfixture Mode: normal, independent, Weißpunkte: 6.500 K (Standard) | 8.000 K | 5.600 K | 4.200 K | 3.200 K
• Maße & Gewicht:
  • Daten enthalten?: ja, Tiefe: 290 mm / 11.4 in, Höhe: 402 – 434 mm / 15.83 – 17.09 in, Gewicht (netto): 13,3 kg / 29.3 lbs, Breite (Arm zu Arm): 415 mm / 16.4 in, Mindestabstand Mitte zu Mitte: 465 mm / 18.3 in
• Dynamische Effekte:
  • Daten enthalten?: ja, Farbmischung: RGB, RGBL, x;y, Color Mix Priority: verschiedene Einstellungen für Layer Priority, Farbrad: virtual, 64 LEE referenced colors, rainbow, CQC: High Output (HO), High Quality (HQ), Desaturation, CTC: variabel 2.500 – 10.000 K, Dimmer / Shutter: 0 – 100%, 16 bit, Strobe, Pulse, Sparkel, etc., Magenta/Grün-Korrektur: vorhanden, Pattern Effekte: 50 dynamische Pattern Macros mit Spezialeffekten, Tungsten Simulation: 8x verknüpft mit festem CCT | 8x relativ zu Colormix, Zoom speed: super fast zoom mechanics
• Elektrische Spezifikationen:
  • Daten enthalten?: ja, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 710 W
• Lichtquelle:
  • Daten enthalten?: ja, CRI: 8.000 K: 87 | 6.500 K: 86+ | 3.200 K: 84+, Anzahl: 19, Duv: perfekte Weißpunkt-Treffer mit niedrigen Duv Werten, LED Refresh Rate: Low: 550 Hz, Optimal: dynamic PWM Algorithm, High 1: 4.600 Hz, High 2: 13.000 Hz, alle Werte gerundet; für genauere Informationen GLP Support kontaktieren, Lebensdauer: 50.000 h, TLCI: 8.000 K: 90 | 6.500 K: 88+ | 3.200 K: 74+, TM-30-15: 6.500 K: 87/105 | 3.200 K: 85/110, Typ: RGBL
• Installation:
  • Daten enthalten?: ja, Standort: indoor, Befestigung: 1 Paar 1/4-Drehverschlüsse, 2 Ösen für Sicherungskabel, M10 Gewinde, Ausrichtung: beliebig, Mindestabstand zu entzündlichen Materialien: 0,1 m, Mindestabstand zu beleuchteten Oberflächen: 1,0 m
• Bewegung:
  • Daten enthalten?: ja, Pan Angle: 540° normal (650° erweitert), 16 bit, Tilt Angle: 240°, 16 bit
• Optisches System:
  • Daten enthalten?: ja, Frontlinse: 19 Linsen mit runder Öffnung, Durchmesser 260 mm, max. Zoom: 63°, min. Zoom: 3,5°, Maximale Lichtintensität: 2 Mcd, Licht-Output: bis zu 12.500 lm, Zoomverhältnis: 1:16
• Light Source:
  • CRI: 8,000 K: 87 | 6,500 K: 86+ | 3,200 K: 84+, CT: 6,500 K, Count: 19, Duv: perfect white point matches with low Duv values, LED Refresh Rate: Low: 550 Hz, Optimal: dynamic PWM Algorithm, High 1: 4,600 Hz, High 2: 13,000 Hz, all values rounded; for detailed information, contact GLP Supprt, Lifetime: 50,000 h, Power: 40 W, TLCI: 8,000 K: 90 | 6,500 K: 88+ | 3,200 K: 74+, TM-30-15: 6,500 K: 87/105 | 3,200 K: 85/110, Type: RGBL
• Dynamic Effects:
  • Color Mixing: RGB, RGBL, x;y, Color Mix Priority: different Layer Priority settings, Color wheel: virtual, 64 LEE referenced colors, rainbow, CQC: High Output (HO), High Quality (HQ), Desaturation, CTC: variable 2,500 – 10,000 K, Dimmer / Shutter: 0 – 100%, 16 bit, Strobe, Pulse, Sparkel, etc., Magenta/Green-Correction: Yes, Pattern Effects: 50 dynamic pattern macros with special effects, Tungsten Simulation: 8x linked to fix CCT | 8x relative to Colormix, Zoom speed: super fast zoom mechanics
• Thermische Spezifikationen:
  • Daten enthalten?: ja, Kühlung: Kombination aus Konvektions- und Zwangskühlung, Überhitzungsschutz: automatisch, Gesamtwärmeabgabe: 2.500 BTU/hr, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: 5 °C / 40 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In/Out, Signal connection: Neutrik XLR 5-Pin In/Out, Neutrik etherCON port A & B (failsafe)
• Construction:
  • Construction features: prepared for external accessories (Egg Crate, Tubus, etc.) | Tilt-Lock-System | baseless design | GLP FX.Port, Housing color: Black, Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates, Protection Rating: IP20
• Movement:
  • Pan Angle: 540° normal (650° extended), 16 bit, Tilt Angle: 240°, 16 bit
• Electrical Specifications:
  • Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 710 W
• Installation:
  • Location: Indoor, Mounting: 1 pair of 1/4-turn locks, 2 eyelets for safety cable, M10 thread, Orientation: any, min. distance to combustible materials: 0.1 m, min. distance to illuminated surfaces: 1.0 m
• Dimensions & Weight:
  • Depth: 290 mm / 11.4 in, Height: 402 – 434 mm / 15.83 – 17.09 in, Weight (netto): 13.3 kg / 29.3 lbs, Width (across yoke): 415 mm / 16.4 in, min. center-to-center-distance: 465 mm / 18.3 in
• Optical System:
  • Front lens: 19 lenses with full circular aperature, diameter 260 mm, max. Zoom: 63°, min. Zoom: 3.5°, Peak Luminous Intensity: 2 Mcd, Total Output: up to 12,500 lm, Zoom ratio: 1:16
• Control & Programming:
  • Control Modes: M1: Basic | M2: Normal | M3: Segment | M4: Multipix Advanced | M5: Multipix Compressed RGB | M6: Multipix Compressed RGBL, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX (FPO), Art-Net, sACN, GLP iQ.Mesh, DMX Channels: M1: 24 | M2: 35 | M3: 41 | M4: 89 | M5: 70 | M6: 89, Dimming curves: linear, soft, S-Curve, Fan Modes: regulated, high, medium, low, High-Res Channels: Pan | Tilt | Intensity | Colormix, Other control options: Art-Net/sACN Node | Data Conversion | NFC | FPO Port (Flexible Protocol Option), PWM: Low | Optimal | High 1 | High 2, Performance Modes: Fast, Normal (Balanced), Smooth, Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, iQ.Service App, GLP iQ.Mesh, 1 Scene Stand Alone, Software update: DMX Link via Dprog, GLP iQ.Mesh, Subfixture Mode: normal, independent, White Points: Default: 6,500 K | optional: 8,000 K | 5,600 K | 4,200 K | 3,200 K
• Thermal Specifications:
  • Cooling Type: combined convection and forced air, Overheating protection: automatic, Total heat dissipation: 2,500 BTU/hr, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: 5 °C / 40 °F

• Hits: 90

Written by Elisabeth Riemesch on 27 June 2023. Posted in PD Event Lighting.

impression X5 IP Maxx – Product Data

• Manual Files: files/products/impression-x5-ip-maxx-product-data/GLP_impression_X5_IP_Maxx_Safety_Manual_EN_Rev20241007-1.pdffiles/products/impression-x5-ip-maxx-product-data/GLP_impression_X5_IP_MAXX_User_Manual_EN_Rev20250119-01.pdf
• DMX Charts: files/products/impression-x5-ip-maxx-product-data/GLP_impression_X5_IP_MAXX_DMX_Channel_Index_Rev20240711-01.pdf
• Photometric Files: files/products/impression-x5-ip-maxx-product-data/GLP_impression_X5_IP_MAXX_Photometrics_Rev_20230119-1.zip
• Fixture Lib. Files: files/products/impression-x5-ip-maxx-product-data/GLP_impression_X5_IP_MAXX_MA2_Rev20240919-1.zip
• CAD Files: files/products/impression-x5-ip-maxx-product-data/GLP_impression_X5_IP_MAXX_CAD_Rev_20241104-1.zipfiles/products/impression-x5-ip-maxx-product-data/GLP_impression_X5_IP_Maxx_Vectorworks_Rev20240703-1.zip
• Info Material Files: files/products/impression-x5-ip-maxx-product-data/GLP_X5-IP-Maxx_Rev20250120.pdffiles/products/impression-x5-ip-maxx-product-data/impression-X5-IP-Maxx_Datasheet_Rev20250120.pdf
• Header Image:
• Product Picture Gallery:



  impression X5 IP Maxx



  impression X5 IP Maxx



  impression X5 IP Maxx



  impression X5 IP Maxx

• Tender Text Files: files/products/impression-x5-ip-maxx-product-data/GLP_impression_X5_IP_MAXX_Tendertext_EN_DE_Rev_20250313-1.zip
• Product info:
  • Long product text (editor):

    The GLP impression X5 IP Maxx delivers an extraordinary luminous flux of up to 21,000 lumens, with an expanded colour space, from 37 powerful 40-watt RGBL LEDs.

    Equipped with the new iQ.Gamut colour algorithm, the impression X5 IP Maxx generates a clean white point with a CRI 86 / TLCI 88+ at 6,500 Kelvin. It also offers the option of quickly switching to other fixed colour temperatures, all of which are precisely calibrated to the colour temperature curve, while still offering a colour quality of CRI 84+ / TLCI 74 even with warm white light of 3,200 Kelvin.

    With the new 19:1 zoom mechanism, the impression X5 IP Maxx delivers up to 3.56 Mcd light intensity, a penetrating 3.3° parallel beam and up to 66° homogeneous wash light. The new, circular lens design offers a modern look, while additional fantastic looks can be generated using individual pixel control with pixel mapping and integrated dynamic pattern effects.

    The impression X5 IP Maxx comes with an extensive feature and effects package, including a virtual colour wheel with access to 64 colours from the LEE filter palette, new colour quality control, magenta/green correction, a tungsten simulation and effects channel and a 2-layer effect option.

    Thanks to the IP65 certification, the fixture can be used both indoors and outdoors in any weather. The compact design, with a weight of < 30 kg, is designed for easily installation in standard pre-rig truss systems.

    The impression X5 IP Maxx can be controlled via DMX, ArtNet, sACN and LumenRadio CRMX. It also has NFC and the iQ.Mesh module for convenient configuration via the GLP iQ.Service app.

    , Short product description: 37 powerful RGBL LED's for stunning Color rendering, IP65 certified
• Anschlüsse:
  • Daten enthalten?: ja, Netzanschluss: Neutrik powerCON TRUE1 In/Out, Signalverbindung: Neutrik XLR 5-Pin In/Out, Neutrik etherCON port A & B (failsafe)
• Aufbau:
  • Daten enthalten?: ja, Eigenschaften: vorbereitet für externes Zubehör | Tilt-Lock-System, Gehäusefarbe: schwarz, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech, Schutzklasse: IP65
• Steuerung & Programmierung:
  • Daten enthalten?: ja, Control Modes: M1: Basic | M2: Normal | M3: Segment | M4: Multipix Advanced | M5: Multipix Compressed RGB | M6: Multipix Compressed RGBL, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX (FPO), Art-Net, sACN, GLP iQ.Mesh, DMX Channels: M1: 22 | M2: 33 | M3: 42 | M4: 141 | M5: 122 | M6: 159, Dimmerkurven: linear, soft, S-Curve, Fan Modes: regulated, high, medium, minimum, High-Res Channels: Pan | Tilt | Intensity | Colormix, Weitere Steuerungsoptionen: Art-Net/sACN Node | Data Conversion | FPO Port (Flexible Protocol Option), PWM: Low | Optimal | High 1 | High 2, Performance Modes: Fast, Normal (Balanced), Smooth, Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, DMX, RDM, iQ.Service App, GLP iQ.Mesh, NFC über iQ.Service App, 1 Scene Stand Alone, Geräte-Update: DMX Link via Dprog, GLP iQ.Mesh, Subfixture Mode: normal, independent, Weißpunkte: 8.000 K | 5.600 K | 4.200 K | 3.200 K
• Maße & Gewicht:
  • Daten enthalten?: ja, Tiefe: 358 mm / 14.1 in, Höhe: 631 mm / 24.8 in, Gewicht (netto): 29,7 kg / 65.5 lbs, Breite (Arm zu Arm): 483 mm / 19 in
• Dynamische Effekte:
  • Daten enthalten?: ja, Farbmischung: RGB, RGBL, x;y, Color Mix Priority: verschiedene Einstellungen für Layer Priority, Farbrad: virtuell, 64 LEE referenzierte Farben, CQC: High Output (HO), High Quality (HQ), Desaturation, CTC: variabel 2.500 – 10.000 K, Dimmer / Shutter: 0 – 100%, 16 bit, Strobe, Pulse, Sparkel, etc., Magenta/Grün-Korrektur: vorhanden, Pattern Effekte: 50 dynamische Pattern Macros mit Spezialeffekten, Tungsten Simulation: 8x verknüpft mit festem CCT | 8x relativ zu Colormix, Zoom speed: extrem schnelle Zoom-Mechanik
• Elektrische Spezifikationen:
  • Daten enthalten?: ja, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 1.500 W
• Lichtquelle:
  • Daten enthalten?: ja, CRI: 8,000 K: 87 | 6,500 K: 86+ | 3,200 K: 84+, CT: 6.500 K, Anzahl: 37, Duv: perfekte Weißpunkt-Treffer mit niedrigen Duv Werten, LED Refresh Rate: Low: 550 Hz, Optimal: dynamic PWM Algorithm, High 1: 4.600 Hz, High 2: 13.000 Hz, alle Werte gerundet; für genauere Informationen GLP Support kontaktieren, Lebensdauer: 50.000 h, TLCI: 8,000 K: 90 | 6,500 K: 88+ | 3,200 K: 74, TM-30-15: 6.500 K: 87/105 | 3.200 K: 85/110, Typ: RGBL LED
• Installation:
  • Daten enthalten?: ja, Standort: indoor, outdoor, Befestigung: 2 Paar 1/4-Drehverschlüsse, 2 Ösen für Sicherungskabel, 2x M10 Gewinde, Ausrichtung: beliebig, Mindestabstand zu entzündlichen Materialien: 0,1 m, Mindestabstand zu beleuchteten Oberflächen: 1,0 m
• Bewegung:
  • Daten enthalten?: ja, Pan Angle: 540° normal (650° erweitert), 16 bit, Tilt Angle: 240°, 16 bit
• Optisches System:
  • Daten enthalten?: ja, Frontlinse: 37 Linsen mit runder Öffnung, Durchmesser 380 mm, max. Zoom: 66°, min. Zoom: 3,3°, Maximale Lichtintensität: 3,56 Mcd, Licht-Output: bis zu 21.000 lm, Zoomverhältnis: 1:19
• Light Source:
  • CRI: 8,000 K: 87 | 6,500 K: 86+ | 3,200 K: 84+, CT: 6,500 K, Count: 37, Duv: perfect white point matches with low Duv values, LED Refresh Rate: Low: 550 Hz, Optimal: dynamic PWM Algorithm, High 1: 4,600 Hz, High 2: 13,000 Hz, all values rounded; for detailed information, contact GLP Supprt, Lifetime: 50,000 h, Power: 40 W, TLCI: 8,000 K: 90 | 6,500 K: 88+ | 3,200 K: 74, TM-30-15: 6,500 K: 87/105 | 3,200 K: 85/110, Type: RGBL LED
• Lieferung:
  • Daten enthalten?: ja, Tourpack: 2-fach, Flightcase, Omega Brackets
• Dynamic Effects:
  • Color Mixing: RGB, RGBL, x;y, Color Mix Priority: different Layer Priority settings, Color wheel: virtual, 64 LEE referenced colors, rainbow, CQC: High Output (HO), High Quality (HQ), Desaturation, CTC: variable 2,500 – 10,000 K, Dimmer / Shutter: 0 – 100%, 16 bit, Strobe, Pulse, Sparkel, etc., Magenta/Green-Correction: Yes, Pattern Effects: 50 dynamic pattern macros with special effects, Tungsten Simulation: 8x linked to fix CCT | 8x relative to Colormix, Zoom speed: super fast zoom mechanics
• Thermische Spezifikationen:
  • Daten enthalten?: ja, Kühlung: Kombination aus Konvektions- und Zwangskühlung, Überhitzungsschutz: automatisch, Gesamtwärmeabgabe: 5.120 BTU/hr, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: -10 °C / 14 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In/Out, Signal connection: Neutrik XLR 5-Pin In/Out, Neutrik etherCON port A & B (failsafe)
• Construction:
  • Construction features: prepared for external accessories | Tilt-Lock-System, Housing color: Black, Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates, Protection Rating: IP65
• Movement:
  • Pan Angle: 540° normal (650° extended), 16 bit, Tilt Angle: 240°, 16 bit
• Electrical Specifications:
  • Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 1,500 W
• Installation:
  • Location: Indoor, Outdoor, Mounting: 2 pairs of 1/4-turn locks, 2 eyelets for safety cable, 2x M10 threads, Orientation: any, min. distance to combustible materials: 0.1 m, min. distance to illuminated surfaces: 1.0 m
• Shipping:
  • Tourpack: 2-way, Flightcase, Omega Brackets
• Dimensions & Weight:
  • Depth: 358 mm / 14.1 in, Height: 631 mm / 24.8 in, Weight (netto): 29.7 kg / 65.5 lbs, Width (across yoke): 483 mm / 19 in
• Optical System:
  • Front lens: 37 lenses with full circular aperature, diameter 380 mm / 14.9 in, max. Zoom: 66°, min. Zoom: 3.3°, Peak Luminous Intensity: 3.56 Mcd, Total Output: up to 21,000 lm, Zoom ratio: 1:19
• Control & Programming:
  • Control Modes: M1: Basic | M2: Normal | M3: Segment | M4: Multipix Advanced | M5: Multipix Compressed RGB | M6: Multipix Compressed RGBL, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX (FPO), Art-Net, sACN, GLP iQ.Mesh, DMX Channels: M1: 22 | M2: 33 | M3: 42 | M4: 141 | M5: 122 | M6: 159, Dimming curves: linear, soft, S-Curve, Fan Modes: regulated, high, medium, minimum, High-Res Channels: Pan | Tilt | Intensity | Colormix, Other control options: Art-Net/sACN Node | Data Conversion | FPO Port (Flexible Protocol Option), PWM: Low | Optimal | High 1 | High 2, Performance Modes: Fast, Normal (Balanced), Smooth, Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, iQ.Service App, GLP iQ.Mesh, NFC via iQ.Service App, 1 Scene Stand Alone, Software update: DMX Link via Dprog, GLP iQ.Mesh, Subfixture Mode: normal, independent, White Points: optional: 8,000 K | 5,600 K | 4,200 K | 3,200 K
• Thermal Specifications:
  • Cooling Type: combined convection and forced air, Overheating protection: automatic, Total heat dissipation: 5,120 BTU/hr, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: -10 °C / 14 °F

• Hits: 69

Written by Elisabeth Riemesch on 26 June 2023. Posted in PD Event Lighting.

GT-1 FL – Product Data

• Manual Files: files/products/gt-1-fl-product-data/GT-1_User_Manual_EN_Rev.B_20190215.pdf
• DMX Charts: files/products/gt-1-fl-product-data/GT1_DMX_Channel_Index_EN_r5.pdf
• Photometric Files: files/products/gt-1-fl-product-data/GT-1_Photometric.zip
• CAD Files: files/products/gt-1-fl-product-data/GT-1_CAD_-_3D.zipfiles/products/gt-1-fl-product-data/GT-1_Dimensions.pdffiles/products/gt-1-fl-product-data/GT-1_Vectorworks.zipfiles/products/gt-1-fl-product-data/GT-1_WYSIWYG.zip
• Info Material Files: files/products/gt-1-fl-product-data/GLP_GT-1_Cut_Sheet_EN.pdffiles/products/gt-1-fl-product-data/GT-1_Data_Sheet_EN.pdf
• Header Image:
• Product Picture Gallery:



  GT-1 FL



  GT-1 FL

• Product info:
  • Long product text (editor):

    The GT-1 FL from GLP is a true hybrid fixture, working as both a Spot and a Beam fixture with highest levels of performance. Using a high powered 470 Watt discharge lamp, its high quality optical system produces a light beam that features an enormous 22:1 ratio zoom range from 3.5° to 56.7°.

    When in spot mode, the GT-1 FL offers a wide range of effects, including CMY color mixing, eight rotating gobos, 14 fixed pattern gobos, additional beam reduction gobos, and an interchangeable animation wheel. But it doesn’t stop there, the GT-1 also features three different rotating prisms, a fixed color wheel with CTO/CTB filters, and a frost for softening the beam.

    When in beam mode, the GT-1 FL produces an astonishing highly parallel beam of light at 2.5° through its large 145mm diameter front lens, that remains bright and consistent over long distances.

    The GLP GT-1 FL features our unique baseless design, wireless DMX control (optional), full 16 bit pan and tilt movement, full range dimming and shuttering capability, an in built battery for fixture setup, an auto sensing power supply and a low weight of just 25kg, in all giving a vastly versatile fixture for a wide range of applications.

    , Short product description: The ultimative Hybrid Fixture
• Anschlüsse:
  • Daten enthalten?: ja, Netzanschluss: Neutrik powerCON TRUE1 In/Out, Signalverbindung: Neutrik XLR 3-Pin In/Out, Neutrik XLR 5-Pin In/Out
• Aufbau:
  • Daten enthalten?: ja, Gehäusefarbe: schwarz, Sonderfarben auf Anfrage
• Steuerung & Programmierung:
  • Daten enthalten?: ja, Control Modes: Normal, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Einstellung und Adressierung: beleuchtetes Grafik-LCD, intuitive TouchWheel Steuerung, selbstaufladende Pufferbatterie
• Maße & Gewicht:
  • Daten enthalten?: ja, Tiefe (Kopf gerade hoch): 229 mm / 9 in, Höhe (Kopf gerade hoch): 618 mm / 24.3 in, Gewicht (netto): 25 kg / 55 lbs, Breite (Arm zu Arm): 472 mm / 18.6 in
• Dynamische Effekte:
  • Daten enthalten?: ja, Farbmischung: CMY, Farbrad: 11 dichroitische Farbfilter, CTB Filter, CTO Filter, CTC: 2.500 K – 9.000 K, mechanisch, Dimmer / Shutter: 0 – 100%, elektromechanisch, Effektrad: rotier- und indexierbar, austauschbar, Frost: vorhanden, Prisma: 3-fach, 4-fach, 8-fach, drehbar
• Elektrische Spezifikationen:
  • Daten enthalten?: ja, Sicherung: T8A 20mm, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, max. Leistung (@ 230 V): 720 W
• Lichtquelle:
  • Daten enthalten?: ja, CT: 7.300 K, Lebensdauer: 1.500 h, Typ: Entladungslampe
• Installation:
  • Daten enthalten?: ja, Befestigung: 2 Ösen für Sicherungskabel, 4x Camlock und 2x M10 Gewinde, M10 Gewinde, Omega Bracket, einstellbare Schiene für seitliche Trussmontage (optional), abnehmbarer Standfuß mit Ösen für Ratschgurte, Ausrichtung: beliebig
• Bewegung:
  • Daten enthalten?: ja, Pan Angle: 537° (standard), 637° (erweitert), 8 – 16 bit, Tilt Angle: 270°, 8 – 16 bit
• Optisches System:
  • Daten enthalten?: ja, Fokus: 2 m – unendlich, motorisiert, max. Zoom: 56,7°, min. Zoom: 3,5°, Zoomverhältnis: 1:22
• Light Source:
  • CT: 7,300 K, Lifetime: 1,500 h, Type: Discharge lamp
• Lieferung:
  • Daten enthalten?: ja, einzelnes Gerät: Karton, Tourpack: 2-fach, Flightcase, Omega Brackets
• Dynamic Effects:
  • Color Mixing: CMY, Color wheel: 11 dichroic filters, CTB Filter, CTO Filter, CTC: 2,500 K – 9,000 K, mechanical, Dimmer / Shutter: 0 – 100%, electromechanical, Effect wheel: rotatable and indexable, interchangeable, Frost: yes, Gobo wheel: 8 Gobos, rotatable and indexable, changable, Dicro color gobos, Gobo wheel 2: 14 fix metal gobos plus 6 different pinholes, Prism: 3-way, 4-way, 8-way, rotatable
• Thermische Spezifikationen:
  • Daten enthalten?: ja, Überhitzungsschutz: automatisch, max. Umgebungstemperatur: 45 °C / 115 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In/Out, Signal connection: Neutrik XLR 3-Pin In/Out, Neutrik XLR 5-Pin In/Out
• Construction:
  • Housing color: Black, special colors on request
• Movement:
  • Pan Angle: 537° (default), 637° (extended), 8 – 16 bit, Tilt Angle: 270°, 8 – 16 bit
• Electrical Specifications:
  • Fuse: T8A 20mm, Power Input: 100 – 240 VAC / 50 – 60 Hz, max. Power (@ 230 V): 720 W
• Installation:
  • Mounting: 2 eyelets for safety cable, 4x Camlock and 2x M10 threads, M10 thread, Omega Bracket, adjustable rail for sideways truss installation (optional), removable baseplate with brackets for ratchet belt, Orientation: any
• Shipping:
  • single fixture: carton, Tourpack: 2-way, Flightcase, Omega Brackets
• Dimensions & Weight:
  • Depth (head straight up): 229 mm / 9 in, Height (head straight up): 618 mm / 24.3 in, Weight (netto): 25 kg / 55 lbs, Width (across yoke): 472 mm / 18.6 in
• Optical System:
  • Focus: 2 m – infinity, motorized, max. Zoom: 56.7°, min. Zoom: 3.5°, Zoom ratio: 1:22
• Control & Programming:
  • Control Modes: Normal, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Setting and addressing: backlit graphic LCD, intuitive touch wheel control, self charging buffer battery
• Thermal Specifications:
  • Overheating protection: automatic, max. ambient temperature: 45 °C / 115 °F

• Hits: 89

Written by Elisabeth Riemesch on 23 June 2023. Posted in PD Event Lighting.

FUSION Stick FS20 – Product Data

• Manual Files: files/products/fusion-stick-fs20-product-data/Manual_Fusion_Stick_FS20.pdf
• Fixture Lib. Files: files/products/fusion-stick-fs20-product-data/FS20_Fixture_MA.zipfiles/products/fusion-stick-fs20-product-data/GLP_FUSION_Stick_FS20_Camsys_Rev20210715-1.zip
• CAD Files: files/products/fusion-stick-fs20-product-data/DWG_DXF_3_copy_1.zip
• Info Material Files: files/products/fusion-stick-fs20-product-data/FUSION_Stick-FS20FS10_EN.pdffiles/products/fusion-stick-fs20-product-data/GLP-Installation_FUSION-Stick-FS20_DE.pdffiles/products/fusion-stick-fs20-product-data/GLP-Installation_FUSION-Stick-FS20_EN.pdf
• Header Image:
• Product Picture Gallery:

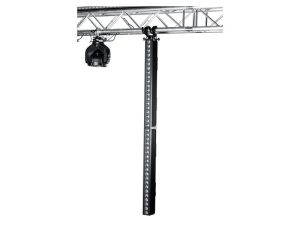

  FUSION Stick FS20



  FUSION Stick FS20



  FUSION Stick FS20

• Tender Text Files: files/products/fusion-stick-fs20-product-data/FUSION-FS20_tender-text-GER.zip
• Firmware: files/products/fusion-stick-fs20-product-data/FS20_V1034_20220218.zip
• Product info:
  • Long product text (editor):

    The FUSION Stick FS20 has the ability to easily add various beam angle filters, including asymmetrical options, producing a perfectly homogeneous light output. The Stick features 20°, 40°, 60° and 60°x10° diffuser plates which can be fixed to the front of the fixture. With these diffuser plates attached the Stick outputs enough power to produce light beams that cut through modern stage designs.

    As with all FUSION by GLP fixtures the FUSION Stick FS20 fixtures feature an IP rating of 65, allowing for full outdoor use regardless of poor weather conditions. To that end the Stick features a fanless design, which not only ensures an IP65 rating, but also enables silent operation for sound sensitive environments such as theaters or television.

    The Stick fixtures feature FUSION’s SteadyColor™ technology which allows color mixing through the RGBW LED’s to remain exact through all dimming levels removing the possibility of color shifts and the need for single color correction.

    Additionally the Stick fixtures feature the uniquely designed ConsistentColor™ optic which creates the perfect balance of output and homogeneity, producing high quality light output without coronas or color shifts.

    No matter what the application the FUSION Stick FS20 is the right choice.

    , Short product description: 20 x 15 Watt RGBW Osram® LEDs, 6° ConsistentColor™ Optic, fanless outdoor design
• Anschlüsse:
  • Daten enthalten?: ja, Netzanschluss: Neutrik powerCON TRUE1 In/Out, Signalverbindung: Neutrik XLR 5-Pin In/Out
• Aufbau:
  • Daten enthalten?: ja, Eigenschaften: Alignment System | austauschbarer Frontscreen, Gehäusefarbe: schwarz, Gehäusematerial: Aluminium, Schutzklasse: IP65
• Steuerung & Programmierung:
  • Daten enthalten?: ja, Control Modes: 8, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX DMX/RDM (optional), Einstellung und Adressierung: OLED Display mit 4 Knöpfen, DMX, RDM, Geräte-Update: DMX Link via Updater
• Maße & Gewicht:
  • Daten enthalten?: ja, Tiefe: 90 mm / 3.54 in, Höhe: 231 mm / 9.09 in, Gewicht (netto): 12,5 kg / 27.55 lbs, Breite: 1.019 mm / 40.12 in
• Elektrische Spezifikationen:
  • Daten enthalten?: ja, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 357 W, max. Anzahl Geräte auf einer Stromleitung: 4 @ 100 – 120 V, 60 Hz | 10 @ 200 – 240 V, 50 Hz
• Lichtquelle:
  • Daten enthalten?: ja, Anzahl: 20, Lebensdauer: 20.000 h, Leistung: 15 W, Typ: RGBW
• Installation:
  • Daten enthalten?: ja, Standort: outdoor, Befestigung: 2 Paar 1/4-Drehverschlüsse, 2 Ösen für Sicherungskabel, Ausrichtung: beliebig, Mindestabstand zu entzündlichen Materialien: 0,5 m, Mindestabstand zu beleuchteten Oberflächen: 0,5 m
• Optisches System:
  • Daten enthalten?: ja, max. beam angle: 6° half peak
• Light Source:
  • Count: 20, Lifetime: 20,000 h, Power: 15 W, Type: RGBW
• Thermische Spezifikationen:
  • Daten enthalten?: ja, Kühlung: lüfterlose Konvektionskühlung, Überhitzungsschutz: automatisch, max. Umgebungstemperatur: 45 °C / 113 °F, min. Umgebungstemperatur: -10 °C / 14 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In/Out, Signal connection: Neutrik XLR 5-Pin In/Out
• Construction:
  • Construction features: Alignment System | Changeable Frontscreen, Housing color: Black, Housing material: aluminum, Protection Rating: IP65
• Electrical Specifications:
  • Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 357 W, max. number of products per current line: 4 @ 100 – 120 V, 60 Hz | 10 @ 200 – 240 V, 50 Hz
• Installation:
  • Location: Outdoor, Mounting: 2 pairs of 1/4-turn locks, 2 eyelets for safety cable, Orientation: any, min. distance to combustible materials: 0.5 m, min. distance to illuminated surfaces: 0.5 m
• Dimensions & Weight:
  • Depth: 90 mm / 3.54 in, Height: 231 mm / 9.09 in, Weight (netto): 12.5 kg / 27.55 lbs, Width: 1,019 mm / 40.12 in
• Optical System:
  • min. beam angle: 6° half peak
• Control & Programming:
  • Control Modes: 8, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX DMX/RDM (optional), Setting and addressing: OLED Display with 4 buttons, DMX, RDM, Software update: DMX Link via Updater
• Thermal Specifications:
  • Cooling Type: convection, Overheating protection: automatic, max. ambient temperature: 45 °C / 113 °F, min. ambient temperature: -10 °C / 14 °F

• Hits: 117
