impression X4 Bar 10 – Product Data

  • Hits: 119

impression X4 – Product Data

  • Hits: 100

impression FR10 Bar – Product Data

  • Hits: 84

impression FR1 TM – Product Data

  • Hits: 70

impression FR1 – Product Data

  • Hits: 77

impression S350 Wash – Product Data

  • Manual Files: files/products/impression-s350-wash-product-data/impression_S350_Wash_User_Manual_V50_EN__Rev_C_20200217.pdf
  • DMX Charts: files/products/impression-s350-wash-product-data/impression_S350_Wash_DMX_Channel_Index_V50_EN_Rev_C_20200217.pdf
  • Photometric Files: files/products/impression-s350-wash-product-data/impression_S350_Wash_Photometric_Rev.20190812.zip
  • Fixture Lib. Files: files/products/impression-s350-wash-product-data/impression_S350_Wash_Camsys_Rev.20190509.zipfiles/products/impression-s350-wash-product-data/impression_S350_Wash_HOG4_Rev.20190813.zipfiles/products/impression-s350-wash-product-data/impression_S350_Wash_MA2_Rev.20191218.zipfiles/products/impression-s350-wash-product-data/impression_S350_Wash_Onyx_Rev.20190429.zipfiles/products/impression-s350-wash-product-data/impression_S350_Wash_Wysiwyg_Rev20191030.zip
  • CAD Files: files/products/impression-s350-wash-product-data/impression_S350_Wash_CAD_Rev.20190613.zipfiles/products/impression-s350-wash-product-data/impression_S350_Wash_Vectorworks_Rev.20190517.zip
  • Info Material Files: files/products/impression-s350-wash-product-data/GLP_S350-Wash.pdffiles/products/impression-s350-wash-product-data/impression_S350_Wash_Data_Sheet_EN.pdf
  • Header Image: impression S350 Wash
  • Product Picture Gallery:
  • Tender Text Files: files/products/impression-s350-wash-product-data/impression_S350_Wash_Tendertext_EN_DE_Rev.20191219.zip
  • Firmware: files/products/impression-s350-wash-product-data/impression_S350_Wash_Firmware_V53_Rev20200203.zip
  • Product info:
    • Long product text (editor):

      The impression S350 Wash from GLP brings a new level of control and functionality to the mid-range LED wash light market. At its core, the impression S350 Wash utilizes GLP’s white light LED engine, also used in its spot counterpart, the S350, and features a CRI of more than 90, with TM-30 and CQS measurements of 95+ for superior color rendering at its native 6,000 K color temperature.

      The S350 Wash uses a Fresnel based optical system with zoom optics that give a range from 6 to 45 degrees for the broadest range of flexibility. Any angle within the zoom range, users have access to a full 4 blade curtain framing system, where each framing blade can cross the entire beam independently for a full blackout. Combined together, any combination of the blades – including the ability to rotate the entire assembly through 90 degrees – allows you to focus the output onto precise and accurate areas of the performance area, with complete accuracy when returning time after time. For further beam control, a high speed iris is also included for additional options and effects.

      The color engine of the S350 Wash is the same as its spot partner allowing full color matching and variable color temperature control for seamless blending. A wide pallet of colors is achieved through a dichroic CMY system that is then supported by a fixed color wheel containing 10 slots, plus its open position. This is then complemented with a variable color temperature control system that allows a full range from 2,500 K to 8,000 K to be achieved on either, or both, of the color systems.

      , Short product description: Premium White-Light Quality, Framing System, Flicker free operation, CTC System from 8,000 K to 2,500 K, baseless design
  • Zulassungen & Klassifizierungen:
    • Daten enthalten?: ja, Risk Group EN 62471: Risk Group 2
  • Anschlüsse:
    • Daten enthalten?: ja, Netzanschluss: Neutrik powerCON TRUE1 In, Signalverbindung: Neutrik XLR 3-Pin In/Out, Neutrik XLR 5-Pin In/Out, Neutrik etherCON In/Out
  • Aufbau:
    • Daten enthalten?: ja, Eigenschaften: baseless Design | Tilt-Lock-System | modulares Einschubsystem | leicht austauschbare Lichtquelle, Gehäusefarbe: schwarz, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech, Schutzklasse: IP20
  • Steuerung & Programmierung:
    • Daten enthalten?: ja, Control Modes: 1, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, DMX Channels: 27, Dimmerkurven: linear, soft, Fan Modes: regulated, high, medium, low, Performance Modes: Fast, Medium, Smooth, Einstellung und Adressierung: beleuchtetes Grafik-LCD, Jog Dial Navigation, DMX, RDM
  • Maße & Gewicht:
    • Daten enthalten?: ja, Tiefe (Kopf gerade hoch): 650 mm / 25.6 in, Höhe (Kopf gerade hoch): 642 mm / 25.3 in, Gewicht (netto): 25,5 kg / 56 lbs, Breite (über Kopf): 474 mm / 18.8 in, Breite (Arm zu Arm): 471 mm / 18.5 in, Mindestabstand Mitte zu Mitte: 600 mm / 23.6 in
  • Dynamische Effekte:
    • Daten enthalten?: ja, Farbmischung: CMY, unabhängig, variabel 0 – 100 %, Farbrad: 10 dichroitische Farbfilter + offen, Framing: 4 separat bewegbare Blendenschieber, +/-45° rotierbares Modul, Iris: variabel, 0 – 100%
  • Elektrische Spezifikationen:
    • Daten enthalten?: ja, Sicherung: T15A 250V 6x32mm, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 550 W, min. Leistung (bei 230 V): 80 W, typ. Leistung (@ 230 V): 500 W
  • Lichtquelle:
    • Daten enthalten?: ja, CQS: 85+, CRI: 90+, CT: 6.000 K, Anzahl: 1, Lebensdauer: 20.000 h, Leistung: 350 W, TLCI: 85+, TM-30-15: 85+ / 85+, Typ: White Light
  • Installation:
    • Daten enthalten?: ja, Standort: trocken, Befestigung: 2 Paar 1/4-Drehverschlüsse, Ösen für Sicherungskabel, M10 Gewinde, Ausrichtung: beliebig, Mindestabstand zu entzündlichen Materialien: 0,2 m, Mindestabstand zu beleuchteten Oberflächen: 2,0 m
  • Bewegung:
    • Daten enthalten?: ja, Pan Angle: 565°, Tilt Angle: 256°
  • Optisches System:
    • Daten enthalten?: ja, Fokus: 2 m – unendlich, motorisiert, Focus tracking: off | near | medium | far, Durchmesser Lichtaustrittsfläche: 185 mm, max. Zoom: 68° cutoff angle, min. Zoom: 6° half peak, Licht-Output: 7.300 – 10.300 lm, Zoomverhältnis: 1:5
  • Light Source:
    • CQS: 85+, CRI: 90+, CT: 6.000 K, Count: 1, Lifetime: 20,000 h, Power: 350 W, TLCI: 85+, TM-30-15: 85+ / 85+, Type: White Light
  • Dynamic Effects:
    • Color Mixing: CMY, independently, variable 0 – 100 %, Color wheel: 10 dichroic filters + open, Framing: 4 separately movable shutters, +/- 45° rotatable module, Iris: variable, 0 – 100%
  • Thermische Spezifikationen:
    • Daten enthalten?: ja, Überhitzungsschutz: automatisch, Gesamtwärmeabgabe: 1.878 BTU/h, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: 5 °C / 40 °F
  • Connections:
    • Power connection: Neutrik powerCON TRUE1 In, Signal connection: Neutrik XLR 3-Pin In/Out, Neutrik XLR 5-Pin In/Out, Neutrik etherCON In/Out
  • Construction:
    • Construction features: baseless design | Tilt-Lock-System | modular slide system | service friendly light source change, Housing color: Black, Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates, Protection Rating: IP20
  • Movement:
    • Pan Angle: 565°, Tilt Angle: 256°
  • Electrical Specifications:
    • Fuse: T15A 250V 6x32mm, Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 550 W, min. Power (@ 230 V): 80 W
  • Installation:
    • Location: Dry, Mounting: 2 pairs of 1/4-turn locks, eyelets for safety cable, M10 thread, Orientation: any, min. distance to combustible materials: 0.2 m, min. distance to illuminated surfaces: 2.0 m
  • Dimensions & Weight:
    • Depth (head straight up): 650 mm / 25.6 in, Height (head straight up): 642 mm / 25.3 in, Weight (netto): 25.5 kg / 56 lbs, Width (across head): 474 mm / 18.8 in, Width (across yoke): 471 mm / 18.5 in, min. center-to-center-distance: 600 mm / 23.6 in
  • Optical System:
    • Focus: 2 m – infinity, motorized, Focus tracking: off | near | medium | far, Light aperature diameter: 185 mm / 7.3 in, max. Zoom: 68° cutoff angle, min. Zoom: 6° half peak, Total Output: 7,300 – 10,300 lm, Zoom ratio: 1:5
  • Control & Programming:
    • Control Modes: 1, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, DMX Channels: 27, Dimming curves: linear, soft, Fan Modes: regulated, high, medium, low, Performance Modes: Fast, Medium, Smooth, Setting and addressing: backlit graphic LCD, Jog Dial Navigation, DMX, RDM
  • Thermal Specifications:
    • Overheating protection: automatic, Total heat dissipation: 1,878 BTU/h, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: 5 °C / 40 °F
  • Approvals & Classifications:
    • Risk Group EN 62471: Risk Group 2

ES und FR nicht aktuell!!

  • Hits: 164

impression S350 – Product Data

  • Manual Files: files/products/impression-s350-product-data/impression_S350_User_Manual_V50_EN_Rev_C_20200217.pdf
  • DMX Charts: files/products/impression-s350-product-data/impression_S350_DMX_Channel_Index_V50_EN_Rev_C_20200217.pdf
  • Photometric Files: files/products/impression-s350-product-data/impression_S350_Photometrics_Rev.20190319.zip
  • Fixture Lib. Files: files/products/impression-s350-product-data/impression_S350_Camsys_Rev20180530.zipfiles/products/impression-s350-product-data/impression_S350_HOG_Rev20180416.zipfiles/products/impression-s350-product-data/impression_S350_MA2_Rev.20191218.zipfiles/products/impression-s350-product-data/impression_S350_Obsidian_Rev.20190125.zipfiles/products/impression-s350-product-data/impression_S350_Wysiwyg_Rev.20190108.zip
  • CAD Files: files/products/impression-s350-product-data/impression_S350_CAD_Rev.20180710.zipfiles/products/impression-s350-product-data/impression_S350_Vectorworks_Rev.20180517.zip
  • Info Material Files: files/products/impression-s350-product-data/GLP_S350.pdffiles/products/impression-s350-product-data/impression_S350_Flyer_EN.pdf
  • Header Image: impression S350
  • Product Picture Gallery:
  • Tender Text Files: files/products/impression-s350-product-data/impression_S350_Tendertext_EN_DE_Rev.20191219.zip
  • Firmware: files/products/impression-s350-product-data/impression_S350_Firmware_V53_Rev20200203.zip
  • Product info:
    • Long product text (editor):

      The GLP impression S350 is the next generation of LED Moving Head Profiler, with anuniquelydesigned full spectrum light source, which makes primary color more intense, pastel colors more natural, and colored objects and skin-tones more lively.

      A comfortable optic zoom from 8° – 42° provides an even and flat field with a considerable light output of up to 8.900 lm, with less than a 15% drop in output within the zoom range.
      But that’s not all – additionally, the compact fixture houses such cutting edge effects as an 8-facet-prism, a light and heavy frost, a tiltableanimation wheel and a fast fully closable framing system. All functions are fully capable of working in combination with one another, making the GLP impression S350 perfect for a wide range of applications.

      The impression S350 features GLP’s unique baseless design with full 16 bit Pan and Tilt Movement, full range dimming, and shuttering capability. With a low weight of just 25.5kg / 56 lbs., the impression S350 also features an in-built battery for fixture setup, an auto sensing power supply and the option to have wireless DMX control.

      Due to this wide range of usability, the fixture is best fitting for Dry Hire and Rental companies and used in applications such as TV, Show, Musical, Theatre, Touring and Exhibitions.

      , Short product description: The GLP impression S350 is the next generation of LED Moving Head Profiler, with an uniquely designed full spectrum light source
  • Anschlüsse:
    • Daten enthalten?: ja, Netzanschluss: Neutrik powerCON TRUE1 In, Signalverbindung: Neutrik XLR 3-Pin In, Neutrik XLR 5-Pin In, Neutrik etherCON In
  • Aufbau:
    • Daten enthalten?: ja, Eigenschaften: baseless Design, Gehäusefarbe: schwarz, Schutzklasse: IP20
  • Steuerung & Programmierung:
    • Daten enthalten?: ja, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, Einstellung und Adressierung: beleuchtetes Grafik-LCD, intuitive TouchWheel Steuerung, selbstaufladende Pufferbatterie
  • Maße & Gewicht:
    • Daten enthalten?: ja, Tiefe (Kopf gerade hoch): 474 mm / 18.8 in, Höhe (Kopf gerade hoch): 642 mm / 25.3 in, Gewicht (netto): 25,5 kg / 56 lbs, Breite (Arm zu Arm): 471 mm / 18.5 in
  • Dynamische Effekte:
    • Daten enthalten?: ja, Farbmischung: CMY, Farbrad: 4 CTC Filter, 6 Farben + offen, CTC: variabel 2.500 – 8.000 K, Dimmer / Shutter: 0 – 100%, elektronisch, zwei Dimmerkurven, Effektrad: 90° neigbar, rotier- und indexierbar, Framing: 4 separat bewegbare Blendenschieber, +/-30° positionierbar, 100% in den Beam einfahrbar, +/-45° rotierbares Modul, Frost: 2-fach (soft & medium), Gobo-Rad: 7 Gobos, dreh- und indexierbar, austauschbar, Gobo-Rad 2: 10 Gobos, fest, Prisma: 8-fach
  • Elektrische Spezifikationen:
    • Daten enthalten?: ja, Sicherung: T5A 250V 20mm, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 550 W
  • Lichtquelle:
    • Daten enthalten?: ja, CQS: 90+, CRI: 90+, CT: 6.000 K, Anzahl: 1, Lebensdauer: 20.000 h, Leistung: 350 W, TLCI: 90+, TM-30-15: 85+ / 95+, Typ: White Light
  • Installation:
    • Daten enthalten?: ja, Befestigung: 2 Ösen für Sicherungskabel, 4x Camlock und 2x M10 Gewinde, Omega Bracket, abnehmbarer Standfuß mit Ösen für Ratschgurte, Ausrichtung: beliebig
  • Bewegung:
    • Daten enthalten?: ja, Pan Angle: 565°, 16 bit, Tilt Angle: 256°, 16 bit
  • Optisches System:
    • Daten enthalten?: ja, Fokus: 2 m – unendlich, max. Zoom: 42°, min. Zoom:
  • Light Source:
    • CQS: 90+, CRI: 90+, CT: 6,000 K, Count: 1, Lifetime: 20,000 h, Power: 350 W, TLCI: 90+, TM-30-15: 85+ / 95+, Type: White Light
  • Lieferung:
    • Daten enthalten?: ja, Tourpack: 2-fach, Flightcase, Omega Brackets
  • Dynamic Effects:
    • Color Mixing: CMY, Color wheel: 4 CTC Filter, 6 colors + open, CTC: variable 2,500 – 8,000 K, Dimmer / Shutter: 0 – 100%, electronical, two dimming curves, Effect wheel: 90° tiltable, rotatable and indexable, Framing: 4 separately movable shutters, +/-30° positionable, 100% positionable into the beam, +/- 45° rotatable module, Frost: 2-way (soft & medium), Gobo wheel: 7 Gobos, rotatable und indexable, changeable, Gobo wheel 2: 10 Gobos, fix, Prism: 8-way
  • Thermische Spezifikationen:
    • Daten enthalten?: ja, Überhitzungsschutz: automatisch, max. Umgebungstemperatur: 45 °C / 115 °F
  • Connections:
    • Power connection: Neutrik powerCON TRUE1 In, Signal connection: Neutrik XLR 3-Pin In, Neutrik XLR 5-Pin In
  • Construction:
    • Housing color: Black, Protection Rating: IP20
  • Movement:
    • Pan Angle: 565°, 16 bit, Tilt Angle: 256°, 16 bit
  • Electrical Specifications:
    • Fuse: T5A 250V 20mm, Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 550 W
  • Installation:
    • Mounting: 2 eyelets for safety cable, 4x Camlock and 2x M10 threads, Omega Bracket, removable baseplate with brackets for ratchet belt, Orientation: any
  • Shipping:
    • Tourpack: 2-way, Flightcase, Omega Brackets
  • Dimensions & Weight:
    • Depth (head straight up): 474 mm / 18.8 in, Height (head straight up): 642 mm / 25.3 in, Weight (netto): 25.5 kg / 56 lbs, Width (across yoke): 471 mm / 18.5 in
  • Optical System:
    • Focus: 2 m – infinity, max. Zoom: 42°, min. Zoom:
  • Control & Programming:
    • Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, Setting and addressing: backlit graphic LCD, intuitive touch wheel control, self charging buffer battery
  • Thermal Specifications:
    • Overheating protection: automatic, max. ambient temperature: 45 °C / 115 °F

ES und FR nicht aktuell!!

  • Hits: 439

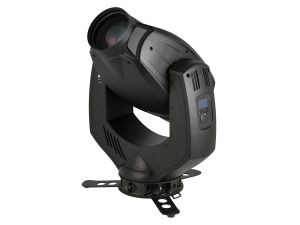

impression E350 – Product Data

  • Manual Files: files/products/impression-e350-product-data/impression_E350_User_Manual_V50_EN_Rev_C_20200217.pdf
  • DMX Charts: files/products/impression-e350-product-data/impression_E350_DMX_Channel_Index_V50_EN_Rev_C_20200217.pdf
  • Photometric Files: files/products/impression-e350-product-data/impression_E350_Photometrics_Rev.20181011_1.zip
  • Fixture Lib. Files: files/products/impression-e350-product-data/impression_E350_HOG_Rev.20190902.zipfiles/products/impression-e350-product-data/impression_E350_MA2_Rev.20190326_1.zipfiles/products/impression-e350-product-data/impression_E350_Obsidian_Rev.20190125.zipfiles/products/impression-e350-product-data/impression_E350_Wysiwyg_Rev.20180109.zip
  • CAD Files: files/products/impression-e350-product-data/impression_E350_CAD_Rev.20190108.zipfiles/products/impression-e350-product-data/impression_E350_Vectorworks_copy_1.zip
  • Info Material Files: files/products/impression-e350-product-data/impression_E350_Flyer_EN.pdffiles/products/impression-e350-product-data/GLP_impression_E350_Cut_Sheet_EN_copy_1.pdf
  • Header Image: impression E350
  • Product Picture Gallery:
  • Tender Text Files: files/products/impression-e350-product-data/impression_E350_Tendertext_EN_DE_Rev._20191219.zip
  • Firmware: files/products/impression-e350-product-data/impression_E350_Firmware_V53_Rev20200203.zip
  • Product info:
    • Long product text (editor):

      The impression E350 is the brother of the impression S350 LED Moving Head. With its 30% brighter LED engine and very narrow iris, the fixture fits for a variety of applications. With a color temperature of 7.500K, it is able to create sharp midair effects and bright gobo projections.

      The optic offers a 1:5 zoom (8° – 42 °) and has a very even field with a remarkable light output of up to 12.200 lm.

      The color mixing is done using CMY filters, which are specially calculated for the LED spectrum and provide a color mixture from pastel shades to deep saturated colors. If required, GLP's new CTC function provides continuous color temperature adjustment from 2.500 K to 8.000 K

      The impression E350 also houses an 8x prism, a 2x frost, a tiltable animation wheel, two gobo wheels, a super tight 14-blade iris, and a 10-color color wheel. Of course, all functions can be used in combination with each other and make the GLP impression E350 the perfect tool for almost any application.

      Like the impression S350, the E350 does without a classic base and, with a weight of just 24.5 kg, is one of the real lightweights. The universal power supply, the integrated battery are as self-evident as the optional LumenRadio CRMX adapter for wireless DMX.

      , Short product description: With its extensive features and compact size, the impression E350 is the first choice for medium-range LED spots
  • Anschlüsse:
    • Daten enthalten?: ja, Netzanschluss: Neutrik powerCON TRUE1 In, Signalverbindung: Neutrik XLR 5-Pin In
  • Aufbau:
    • Daten enthalten?: ja, Eigenschaften: baseless Design, Gehäusefarbe: schwarz, Schutzklasse: IP20
  • Steuerung & Programmierung:
    • Daten enthalten?: ja, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, PWM: 2.200 Hz | 3.000 Hz | 4.800 Hz | 9.600 Hz | 25 kHz, Einstellung und Adressierung: beleuchtetes Grafik-LCD, intuitive TouchWheel Steuerung, selbstaufladende Pufferbatterie, Geräte-Update: DMX Link via Updater
  • Maße & Gewicht:
    • Daten enthalten?: ja, Tiefe (Kopf gerade hoch): 474 mm / 18.8 in, Höhe (Kopf gerade hoch): 642 mm / 25.3 in, Gewicht (netto): 25,5 kg / 56 lbs, Breite (Arm zu Arm): 471 mm / 18.5 in
  • Dynamische Effekte:
    • Daten enthalten?: ja, Farbmischung: CMY, Farbrad: 4 CTC Filter, 6 Farben + offen, CTC: variabel 2.500 – 8.000 K, Dimmer / Shutter: 0 – 100%, elektronisch, zwei Dimmerkurven, Effektrad: 90° neigbar, rotier- und indexierbar, Framing: 4 separat bewegbare Blendenschieber, +/-30° positionierbar, 100% in den Beam einfahrbar, +/-45° rotierbares Modul, Frost: 2-fach (soft & medium), Gobo-Rad: 7 Gobos, dreh- und indexierbar, austauschbar, Gobo-Rad 2: 10 Gobos, fest, Iris: 4 – 100%, Prisma: 8-fach
  • Elektrische Spezifikationen:
    • Daten enthalten?: ja, Sicherung: T5A 250V 20mm, max. Leistung (@ 230 V): 550 W
  • Lichtquelle:
    • Daten enthalten?: ja, CQS: 70+, CRI: 75+, CT: 7.500 K, Anzahl: 1, Lebensdauer: 20.000 h, Leistung: 350 W, TLCI: 45+, TM-30-15: 90+ / 70+, Typ: White Light
  • Installation:
    • Daten enthalten?: ja, Befestigung: 2 Ösen für Sicherungskabel, 4x Camlock und 2x M10 Gewinde, Omega Bracket, abnehmbarer Standfuß mit Ösen für Ratschgurte, Ausrichtung: beliebig
  • Bewegung:
    • Daten enthalten?: ja, Pan Angle: 565°, 16 bit, Tilt Angle: 256°, 16 bit
  • Optisches System:
    • Daten enthalten?: ja, Fokus: 2 m – unendlich, motorisiert, Focus tracking: off | near | medium | far, max. Zoom: 42°, min. Zoom: , Licht-Output: 12.200 lm, Zoomverhältnis: 1:5
  • Light Source:
    • CQS: 70+, CRI: 75+, CT: 7,500 K, Count: 1, Lifetime: 20,000 h, Power: 350 W, TLCI: 45+, TM-30-15: 90+ / 70+, Type: White Light
  • Lieferung:
    • Daten enthalten?: ja, Tourpack: 2-fach, Flightcase, Omega Brackets
  • Dynamic Effects:
    • Color Mixing: CMY, Color wheel: 4 CTC Filters, 6 colors + open, CTC: variable 2,500 – 8,000 K, Dimmer / Shutter: 0 – 100%, electronical, two dimming curves, Effect wheel: 90° tiltable, rotatable and indexable, Framing: 4 separately movable shutters, +/-30° positionable, 100% positionable into the beam, +/- 45° rotatable module, Frost: 2-way (soft & medium), Gobo wheel: 7 Gobos, rotatable and indexable, changeable, Gobo wheel 2: 10 Gobos, fix, Iris: 4 – 100%, Prism: 8-way
  • Thermische Spezifikationen:
    • Daten enthalten?: ja, Überhitzungsschutz: automatisch, max. Umgebungstemperatur: 45 °C / 115 °F
  • Connections:
    • Power connection: Neutrik powerCON TRUE1 In, Signal connection: Neutrik XLR 5-Pin In
  • Construction:
    • Construction features: baseless Design, Housing color: Black, Protection Rating: IP20
  • Movement:
    • Pan Angle: 565°, 16 bit, Tilt Angle: 256°, 16 bit
  • Electrical Specifications:
    • Fuse: T5A 250V 20mm, Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 550 W
  • Installation:
    • Mounting: 2 eyelets for safety cable, 4x Camlock and 2x M10 threads, Omega Bracket, removable baseplate with brackets for ratchet belt, Orientation: any
  • Shipping:
    • Tourpack: 2-way, Flightcase, Omega Brackets
  • Dimensions & Weight:
    • Depth (head straight up): 474 mm / 18.8 in, Height (head straight up): 642 mm / 25.3 in, Weight (netto): 25.5 kg / 56 lbs, Width (across yoke): 471 mm / 18.5 in
  • Optical System:
    • Focus: 2 m – infinity, motorized, Focus tracking: off | near | medium | far, max. Zoom: 42°, min. Zoom: , Total Output: 12,200 lm, Zoom ratio: 1:5
  • Control & Programming:
    • Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, PWM: 2,200 Hz | 3,000 Hz | 4,800 Hz | 9,600 Hz | 25 kHz, Setting and addressing: backlit graphic LCD, intuitive touch wheel control, self charging buffer battery, Software update: DMX Link via Updater
  • Thermal Specifications:
    • Overheating protection: automatic, max. ambient temperature: 45 °C / 115 °F

ES und FR nicht aktuell!!

  • Hits: 93

HIGHLANDER Wash – Product Data

  • Manual Files: files/products/highlander-wash-product-data/HIGHLANDER_Wash_User_Manual_EN_Rev.B_20200110.pdffiles/products/highlander-wash-product-data/GLP_Highlander_Wash_Safety_Manual_EN_Rev20250310-01.pdf
  • DMX Charts: files/products/highlander-wash-product-data/HIGHLANDER_Wash_DMX_Channel_Index_V34_EN_Rev_B_20191219_copy_1.pdf
  • Photometric Files: files/products/highlander-wash-product-data/GLP_Highlander_Wash_Photometrics_Rev20210715-1_copy_1.zip
  • Fixture Lib. Files: files/products/highlander-wash-product-data/HIGHLANDER_Wash_GDTF_Rev20200810.zipfiles/products/highlander-wash-product-data/HIGHLANDER_Wash_HOG_Rev.20190902.zipfiles/products/highlander-wash-product-data/HIGHLANDER_Wash_MA2_Rev.20200109.zipfiles/products/highlander-wash-product-data/HIGHLANDER_Wash_Onyx_Rev.20190429.zipfiles/products/highlander-wash-product-data/HIGHLANDER_Wash_Wysiwyg_Rev.20191030.zipfiles/products/highlander-wash-product-data/HIGHLANDERWash_Camsys_Rev.20190509.zip
  • CAD Files: files/products/highlander-wash-product-data/HIGHLANDER_Wash_CAD_Rev.20190416.zipfiles/products/highlander-wash-product-data/HIGHLANDER_Wash_Vectorworks_Rev.20190517.zip
  • Info Material Files: files/products/highlander-wash-product-data/GLP_HIGHLANDER_Wash_Cut_Sheet_EN.pdffiles/products/highlander-wash-product-data/HIGHLANDER_Wash_Data_Sheet_EN.pdffiles/products/highlander-wash-product-data/HIGHLANDER_Wash_Flyer_EN.pdf
  • Header Image: HIGHLANDER Wash
  • Product Picture Gallery:
  • Tender Text Files: files/products/highlander-wash-product-data/GLP_Highlander_Wash_Tendertext_EN_DE_Rev20210715-1.zip
  • Firmware: files/products/highlander-wash-product-data/GLP_Highlander_Wash_Firmware_V47_Rev20220721-1.zip
  • Product info:
    • Long product text (editor):

      The HIGHLANDER Wash from GLP is a singular fixture that brings a new level of high performance, high output and high quality from a compact discharge source fixture with a superior optical system.

      Using a 1,400 Watt lamp and outputting through a large 230 mm (9 inch) front lens, the GLP HIGHLANDER Wash delivers a truly massive light output, without ever sacrificing quality. With a native color temperature of 6,000 Kelvin, the HIGHLANDER Wash's optics have CRI, CQS and TM-30 quality indices all measuring 90 and above.

      The HIGHLANDER Wash’s high output optical system features a 7 to 1 ratio zoom with a range from a tight 4 degrees out to 61 degrees.

      Beam control is available through an independent and snappy motorized iris, but also through a full feature framing system. This framing system gives 4 blade control with each blade being able to tilt on its axis and cross the entire beam like a curtain. With separate control over each blade, the beam can be controlled down to the finest detail, and recalled in an instant. The entire beam framing system can also be rotated through a 90 degree range for optimum control.

      A glass, dichroic based cyan, magenta, yellow color system gives a full color pallet from the softest pastel shades to full saturation, and anything in between. This is supported by two separately controlled color wheels, each with 7 color positions plus open. The whole color output can also be temperature control anywhere from 2,700 to 6,000 Kelvin using a further separate dichroic based CTO system.

      All combined, this gives the GLP HIGHLANDER Wash a comprehensive color range adaptable to any color temperature environment that it gets placed in.

      Additional control features of the HIGHLANDER Wash include smooth dimming with multiple user-selectable curves, separate shutter control with built in macros, fast 16 bit pan and tilt movement and an ECO operating mode.

      The GLP HIGHLANDER Wash is designed with a compact, baseless design that allows the unit to be hung in any orientation. Power is connected via Neutrik True1, whilst data is connected via 5 pin XLR or Ethernet, with DMX, Art-NET or sACN as available control options.

      The HIGHLANDER Wash runs flicker free and has numerous additional convenience features including a battery powered control system for addressing and configuration without mains power; an auto sensing power supply; 4 carrying handles and a comprehensive set of rigging options. This, combined with its low weight of just 29.5 kg (65 lbs.), make the GLP HIGHLANDER Wash a truly versatile workhorse.

      , Short product description: Powerful washlight with 1,400 W, 230 mm Fresnel front lens, 5.5° beam up to 63° softwash, natural colors, 4 blade framing, very fast pan/tilt, super compact, baseless design, only 29.5 kg
  • Zulassungen & Klassifizierungen:
    • Daten enthalten?: ja, Risk Group EN 62471: Risk Group 2
  • Anschlüsse:
    • Daten enthalten?: ja, Netzanschluss: Neutrik powerCON TRUE1 In, Signalverbindung: Neutrik XLR 5-Pin In, Neutrik etherCON In
  • Aufbau:
    • Daten enthalten?: ja, Eigenschaften: baseless Design | integrierte Griffe im Arm | Tilt-Lock-System | modulares Einschubsystem | leicht zu wartendes Filtersystem | leicht austauschbare Lichtquelle, Gehäusefarbe: schwarz, Gehäusematerial: schlagfestes flammhemmendes Thermoplastik, Aluminium, Stahlblech, Schutzklasse: IP20
  • Steuerung & Programmierung:
    • Daten enthalten?: ja, Control Modes: 1, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX DMX/RDM (optional), Art-Net, sACN, DMX Channels: 26, Dimmerkurven: linear, soft, Fan Modes: regulated, high, High-Res Channels: Dimmer | Pan | Tilt, Performance Modes: Fast, Medium, Smooth, Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation, selbstaufladende Pufferbatterie, Jog Dial Navigation, DMX, RDM, Geräte-Update: DMX Link via Dprog
  • Maße & Gewicht:
    • Daten enthalten?: ja, Tiefe (Kopf gerade hoch): 773 / 30.4 in, Höhe: 773 mm / 30.5 in, Höhe (Kopf gerade hoch): 724 mm / 28.6 in, Gewicht (netto): 29,5 kg / 65.1 lbs, Breite (Arm zu Arm): 492 mm / 19.4 in, Mindestabstand Mitte zu Mitte: 730 mm / 28.7 in
  • Dynamische Effekte:
    • Daten enthalten?: ja, Farbmischung: CMY, Farbrad: 7 dichroitische Farbfilter + offen, Farbrad 2: 7 dichroitische Farbfilter + offen, Dimmer / Shutter: 0 – 100%, elektromechanisch, auswählbare Dimmerkurven, Strobe-Effekte, sofort abdunkelbar, Framing: 4 separat bewegbare Blendenschieber, +/-30° positionierbar, 100% in den Beam einfahrbar, +/-45° rotierbares Modul, Frost: variabel, 0 – 100%, Iris: virtuell via Framing System
  • Elektrische Spezifikationen:
    • Daten enthalten?: ja, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 1.750 W
  • Lichtquelle:
    • Daten enthalten?: ja, CQS: 95+, CRI: 90+, CT: 6.000 K, Lebensdauer: 750 h, TLCI: 95+, TM-30-15: 90+ / 95+, Typ: Entladungslampe
  • Installation:
    • Daten enthalten?: ja, Standort: indoor, Befestigung: 2 Paar 1/4-Drehverschlüsse, 2 Ösen für Sicherungskabel, M10 Gewinde, Mindestabstand zu entzündlichen Materialien: 1,0 m, Mindestabstand zu beleuchteten Oberflächen: 8,0 m
  • Bewegung:
    • Daten enthalten?: ja, Pan Angle: 670°, 16 bit, Tilt Angle: 264°, 16 bit
  • Optisches System:
    • Daten enthalten?: ja, Fokus: 2 m – unendlich, motorisiert, Focus tracking: off | near | medium | far, Frontlinse: Fresnel, Durchmesser Lichtaustrittsfläche: 230 mm, max. Zoom: 61°, min. Zoom: , Licht-Output: 22.000 lm, Zoomverhältnis: 1:7
  • Light Source:
    • CQS: 95+, CRI: 90+, CT: 6,000 K, Lifetime: 750 h, TLCI: 95+, TM-30-15: 90+ / 95+, Type: Discharge lamp
  • Dynamic Effects:
    • Color Mixing: CMY, Color wheel: 7 dichroic color filters + open, Color wheel 2: 7 dichroic color filters + open, Dimmer / Shutter: 0 – 100%, electromechanical, selectable dimming curves, Strobe effects, instant open and blackout, Framing: 4 separately movable shutters, +/-30° positionable, 100% positionable into the beam, +/- 45° rotatable module, Frost: variable, 0 – 100%
  • Thermische Spezifikationen:
    • Daten enthalten?: ja, Überhitzungsschutz: automatisch, Gesamtwärmeabgabe: 5.980 BTU/h, max. Umgebungstemperatur: 45 °C / 115 °F, min. Umgebungstemperatur: 5 °C / 41 °F
  • Connections:
    • Power connection: Neutrik powerCON TRUE1 In, Signal connection: Neutrik XLR 5-Pin In, Neutrik etherCON In
  • Construction:
    • Construction features: baseless design | integrated yoke handles | Tilt-Lock-System | modular slide in system | service friendly filter system | service friendly light source change, Housing color: Black, Housing material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates, Protection Rating: IP20
  • Movement:
    • Pan Angle: 670°, 16 bit, Tilt Angle: 264°, 16 bit
  • Electrical Specifications:
    • Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 1,750 W
  • Installation:
    • Location: Indoor, Mounting: 2 pairs of 1/4-turn locks, 2 eyelets for safety cable, M10 thread, min. distance to combustible materials: 1.0 m, min. distance to illuminated surfaces: 8.0 m
  • Dimensions & Weight:
    • Depth (head straight up): 773 / 30.4 in, Height: 773 mm / 30.5 in, Height (head straight up): 724 mm / 28.6 in, Weight (netto): 29.5 kg / 65.1 lbs, Width (across yoke): 492 mm / 19.4 in, min. center-to-center-distance: 730 mm / 28.7 in
  • Optical System:
    • Focus: 2 m – infinity, motorized, Focus tracking: off | near | medium | far, Front lens: Fresnel, Light aperature diameter: 230 mm / 9 in, max. Zoom: 61° field angle, min. Zoom: 4° beam angle, Total Output: 22,000 lm, Zoom ratio: 1:7
  • Control & Programming:
    • Control Modes: 1, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), LumenRadio CRMX DMX/RDM (optional), Art-Net, sACN, DMX Channels: 26, Dimming curves: linear, soft, Fan Modes: regulated, high, High-Res Channels: Dimmer | Pan | Tilt, Performance Modes: Fast, Medium, Smooth, Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation, Jog Dial Navigation, DMX, RDM, Software update: DMX Link via Dprog
  • Thermal Specifications:
    • Overheating protection: automatic, Total heat dissipation: 5,980 BTU/h, max. ambient temperature: 45 °C / 115 °F, min. ambient temperature: 5 °C / 41 °F
  • Approvals & Classifications:
    • Risk Group EN 62471: Risk Group 2
  • Hits: 88

FUSION X-PAR 12Z – Product Data

  • Manual Files: files/products/fusion-x-par-12z-product-data/FUSION_X-Par_12_Z_Quick_Start_Safety_Manual_EN_Rev_A.pdffiles/products/fusion-x-par-12z-product-data/FUSION_X-Par_12_Z_User_Manual_EN_Rev_A.pdf
  • DMX Charts: files/products/fusion-x-par-12z-product-data/FUSION_X-PAR_12Z_DMX_Channel_Index_EN_Rev20240624-01.pdf
  • Photometric Files: files/products/fusion-x-par-12z-product-data/FUSION_X-PAR_12Z_Photometrics_Rev_20230511-1.zip
  • Fixture Lib. Files: files/products/fusion-x-par-12z-product-data/FUSION_X-Par_Series_MA2_Rev20240618-2_1.zip
  • Info Material Files: files/products/fusion-x-par-12z-product-data/FUSION_X-PAR-12Z.pdffiles/products/fusion-x-par-12z-product-data/FUSION-X-PAR-12Z_Datasheet_Rev20240422.pdf
  • Header Image: FUSION X-PAR 12Z
  • Product Picture Gallery:
  • Tender Text Files: files/products/fusion-x-par-12z-product-data/FUSION_X-PAR_12Z_Tendertext_Rev20230801-1.zip
  • Firmware: files/products/fusion-x-par-12z-product-data/FUSION_X-PAR_12Z_Firmware_V1-2-6_Rev20240620.zip
  • Product info:
    • Long product text (editor):

      The FUSION X-PAR 12Z is a state-of-the-art LED fixture in IP65 design, powered by a single-source COB LED with RGB and Lime as basic colors.

      Featuring a 120-watt RGBL light source and Fresnel optic, the fixture generates up to 2,520 lm output with a CRI 80+. The 190mm front lens provides an eye-catching light output that can be used to create powerful looks

      Combined with a wide zoom (8.5° to 55°), the FUSION X-PAR 12Z is a future-proof evolution of the LED PAR light fixtures.

      The robust aluminum housing in IP65 design allows problem-free use indoors as well as outdoors in dust, dirt or moisture. The enclosed housing thus reduces the maintenance requirements in day-to-day use.

      A filter frame and barndoors are optionally available for the device.

      , Short product description: The future-proof further development of the LED PAR headlamp
  • Anschlüsse:
    • Daten enthalten?: ja, Netzanschluss: PowerCon TRUE1 compatible In/Out, Signalverbindung: Neutrik XLR 5-Pin In/Out
  • Aufbau:
    • Daten enthalten?: ja, Eigenschaften: Bodenstativ mit verstellbarem Fuß | M12 Gewinde für Fallmontage | Halterung für Deckenmontage | Halterung für optionalen Filterrahmen und Barndoor, Gehäusefarbe: schwarz, Gehäusematerial: Aluminium, Schutzklasse: IP65
  • Steuerung & Programmierung:
    • Daten enthalten?: ja, Control Modes: 6, Protokolle: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), DMX Channels: 4 | 6 | 6 | 8 | 11 | 16, Dimmerkurven: linear, S-Curve, square, inverse square, High-Res Channels: Dimmer, Einstellung und Adressierung: OLED Display mit 4 Knöpfen, DMX, RDM, Geräte-Update: DMX Link via Updater
  • Maße & Gewicht:
    • Daten enthalten?: ja, Tiefe: 254 mm / 10 in, Höhe: 245 mm / 9.6 in, Gewicht (netto): 6,9 kg / 15.2 lbs, Breite: 245 mm / 9.6 in
  • Dynamische Effekte:
    • Daten enthalten?: ja, Farbrad: virtuell, 64 Lee Filter + 4 White Presets, CTC: variabel 2.500 – 10.000 K, Dimmer / Shutter: 0 – 100%, elektronisch, 8 bit / 16 bit, Zoom speed: 2,1s, motorisiert, 8 bit
  • Elektrische Spezifikationen:
    • Daten enthalten?: ja, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 135 W
  • Lichtquelle:
    • Daten enthalten?: ja, CRI: 80+, LED Refresh Rate: 600 Hz | 1.200 Hz | 2.200 Hz | 3.000 Hz | 4.800 Hz | 9.600 Hz | 25 kHz, Lebensdauer: 20.000 h, Leistung: 120 W, TLCI: 80+, Typ: RGBL LED
  • Installation:
    • Daten enthalten?: ja, Standort: outdoor, Befestigung: 1 Öse für Sicherungskabel, 1x M12 Gewinde, zentriert, Double Bracket mit drei Löchern, Ausrichtung: beliebig, Mindestabstand zu entzündlichen Materialien: 0,2 m, Mindestabstand zu beleuchteten Oberflächen: 0,5 m
  • Optisches System:
    • Daten enthalten?: ja, Durchmesser Lichtaustrittsfläche: 190 mm, max. Zoom: 55°, min. Zoom: 8,5°, Licht-Output: bis zu 2.600 lm, Zoomverhältnis: 1:7
  • Light Source:
    • CRI: 80+, LED Refresh Rate: 600 Hz | 1,200 Hz | 2,200 Hz | 3,000 Hz | 4,800 Hz | 9,600 Hz | 25 kHz, Lifetime: 20,000 h, Power: 120 W, TLCI: 80+, Type: RGBL LED
  • Dynamic Effects:
    • Color wheel: virtual, 64 Lee Filter + 4 White Presets, CTC: variable 2,500 – 10,000 K, Dimmer / Shutter: 0 – 100%, electronical, 8 bit / 16 bit, Zoom speed: 2.1s, motorized, 8 bit
  • Thermische Spezifikationen:
    • Daten enthalten?: ja, Kühlung: lüfterlose Konvektionskühlung, Überhitzungsschutz: automatisch, Gesamtwärmeabgabe: 460 BTU/h, max. Umgebungstemperatur: 45 °C / 113 °F, min. Umgebungstemperatur: -10 °C / 14 °F
  • Connections:
    • Power connection: PowerCon TRUE1 compatible In/Out, Signal connection: Neutrik XLR 5-Pin In/Out
  • Construction:
    • Construction features: Floor Standing with adjustable Foot | Direct M12 Thread for Drop Mounting | Low-Ceiling Mounting with bracket | Holder for optional filterframe and barndoor, Housing color: Black, Housing material: aluminum, Protection Rating: IP65
  • Electrical Specifications:
    • Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 135 W
  • Installation:
    • Location: Outdoor, Mounting: 1 eyelet for safety cable, 1x M12 thread, centred, Double Bracket with three holes, Orientation: any, min. distance to combustible materials: 0.2 m, min. distance to illuminated surfaces: 0.5 m
  • Dimensions & Weight:
    • Depth: 254 mm / 10 in, Height: 245 mm / 9.6 in, Weight (netto): 6.9 kg / 15.2 lbs, Width: 245 mm / 9.6 in
  • Optical System:
    • Light aperature diameter: 190 mm / 7.48 in, max. Zoom: 55°, min. Zoom: 8.5°, Total Output: up to 2,600 lm, Zoom ratio: 1:7
  • Control & Programming:
    • Control Modes: 6, Control Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), DMX Channels: 4 | 6 | 6 | 8 | 11 | 16, Dimming curves: linear, S-Curve, square, inverse square, Setting and addressing: OLED Display with 4 buttons, DMX, RDM, Software update: DMX Link via Updater
  • Thermal Specifications:
    • Cooling Type: convection, Overheating protection: automatic, Total heat dissipation: 460 BTU/h, max. ambient temperature: 45 °C / 113 °F, min. ambient temperature: -10 °C / 14 °F
  • Hits: 89
©2025 GLP German Light Products GmbH. All rights reserved.
