FUSION Supernova SN70 – Product Data

• Manual Files: files/products/fusion-supernova-sn70-product-data/Manual_Supernova_RGBW.pdf
• CAD Files: files/products/fusion-supernova-sn70-product-data/DWG_DXF_3_copy_2.zip
• Info Material Files: files/products/fusion-supernova-sn70-product-data/FUSION_SUPERNOVA-SN70.pdffiles/products/fusion-supernova-sn70-product-data/GLP_Installation_FUSION_SN70_DE.pdffiles/products/fusion-supernova-sn70-product-data/GLP_Installation_FUSION_SN70_EN.pdf
• Header Image:
• Product Picture Gallery:

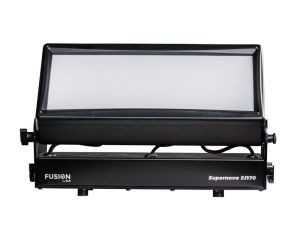

  FUSION Supernova SN70



  FUSION Supernova SN70



  FUSION Supernova SN70

• Product info:
  • Long product text (editor):

    The incredible homogeneous pixel-free light output, paired with an extremely light luminance make it to everybody's darling and a jack of all trades, even as RGBW flood, as blinder, or strobe. The Supernova SN70 is a universal versatile and offers a maximum field of applications as stage light or backlight, in TV studios or with its protection class IP65 for all rough outdoor installations.

    , Short product description: 1,372 x Osram® RGBW LEDs, 60,000 lm, invisible pixel optic, IP65 classification, eventCON® system, 4 controllable LED zones
• Anschlüsse:
  • Daten enthalten?: ja, Netzanschluss: Neutrik powerCON TRUE1 In, Signalverbindung: Neutrik eventCON
• Aufbau:
  • Daten enthalten?: ja, Gehäusefarbe: schwarz, Schutzklasse: IP65
• Steuerung & Programmierung:
  • Daten enthalten?: ja, Protokolle: DMX (USITT DMX512-A), LumenRadio CRMX DMX/RDM (standard), Einstellung und Adressierung: beleuchtetes Grafik-LCD, 4 Button Menu Navigation
• Maße & Gewicht:
  • Daten enthalten?: ja, Tiefe (Kopf gerade hoch): 250 mm / 9.84 in, Höhe (Kopf gerade hoch): 307 mm / 12.08 in, Gewicht (netto): 13,5 kg / 29.76 lbs, Breite (Arm zu Arm): 484 mm / 19.05 in
• Dynamische Effekte:
  • Daten enthalten?: ja, Farbmischung: RGBW, Dimmer / Shutter: 0 – 100%, elektronisch, auswählbare Dimmerkurven, Strobe-Effekte
• Elektrische Spezifikationen:
  • Daten enthalten?: ja, Netzanschluss Input: 100 – 240 VAC / 50 – 60 Hz, Netzteil: Schaltnetzteil, max. Leistung (@ 230 V): 700 W
• Lichtquelle:
  • Daten enthalten?: ja, CRI: 80+, Anzahl: 1.372, Lebensdauer: 50.000 h, Typ: RGBW LEDs
• Installation:
  • Daten enthalten?: ja, Befestigung: 2 Ösen für Sicherungskabel, M10 Gewinde
• Optisches System:
  • Daten enthalten?: ja, max. beam angle: 110°, Licht-Output: 60.000 lm
• Light Source:
  • CRI: 80+, Count: 1,372, Lifetime: 50,000 h, Type: RGBW LEDs
• Dynamic Effects:
  • Color Mixing: RGBW, Dimmer / Shutter: 0 – 100%, electronical, selectable dimming curves, Strobe effects
• Thermische Spezifikationen:
  • Daten enthalten?: ja, Überhitzungsschutz: automatisch, Gesamtwärmeabgabe: 2.389 BTU/h, max. Umgebungstemperatur: 45 °C / 113 °F
• Connections:
  • Power connection: Neutrik powerCON TRUE1 In, Signal connection: Neutrik eventCON
• Construction:
  • Housing color: Black, Protection Rating: IP65
• Electrical Specifications:
  • Power Input: 100 – 240 VAC / 50 – 60 Hz, Power supply unit: auto-ranging electronic switch-mode, max. Power (@ 230 V): 700 W
• Installation:
  • Mounting: 2 eyelets for safety cable, M10 thread
• Dimensions & Weight:
  • Depth (head straight up): 250 mm / 9.84 in, Height (head straight up): 307 mm / 12.08 in, Weight (netto): 13,5 kg / 29.76 lbs, Width (across yoke): 484 mm / 19.05 in
• Optical System:
  • max. field angle: 110°, Total Output: 60,000 lm
• Control & Programming:
  • Control Modes: 3, Control Protocols: DMX (USITT DMX512-A), LumenRadio CRMX DMX/RDM (default), Setting and addressing: backlit graphic LCD, 4 Button Menu Navigation
• Thermal Specifications:
  • Overheating protection: automatic, Total heat dissipation: 2,389 BTU/h, max. ambient temperature: 45 °C / 113 °F
